P24

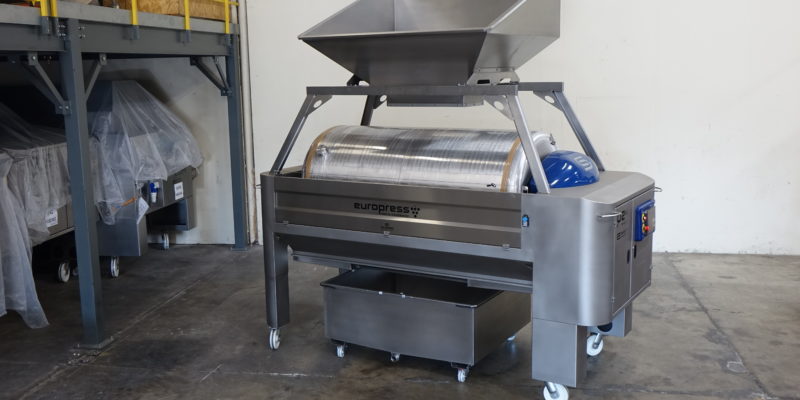

EUROPRESS GRAPE PRESS – MODEL P24

Open style membrane press / Size: 2000 liters (528 gallons)
Approximate pressing capacity: Whole cluster: 1.5 ton, De-stemmed/ crushed: 4.5 tons, Fermented must: 7 tons
Digital controls: solid state micro-processor, fully automatic to 2.0 bar pressure with 12 pre-set programs
Touch screen display
Press basket: open style, with large de-juicing area with conical slots
Safety: emergency stop cables on each side of machine
Motors: 3-phase,230 volt
Integrated vacuum pump and pre-blower: 0.9 hp / Integrated air compressor: 6.1 hp, dry running
Main drive motor: single speed, left and right rotation, 1.0 hp
Drum, frame and juice tray construction: 304 stainless
Double sliding door, 1000 mm × 500 mm (39” × 20”)
Standard juice tray size: 650 liters (170 gallons), 2” outlet located in center of tray with tri-clamp fitting
Pomace emptying aid under the membrane for quicker pomace removal
Muffler for noise reduction
Removable juice tray outlet screen
On four swivel wheels with four handles for easy moving
Dimensions: 3292 mm L × 1394 mm W × 1546 mm H (130” L × 55” W × 61” H)

INCLUDED OPTIONS:
