EQ1-34

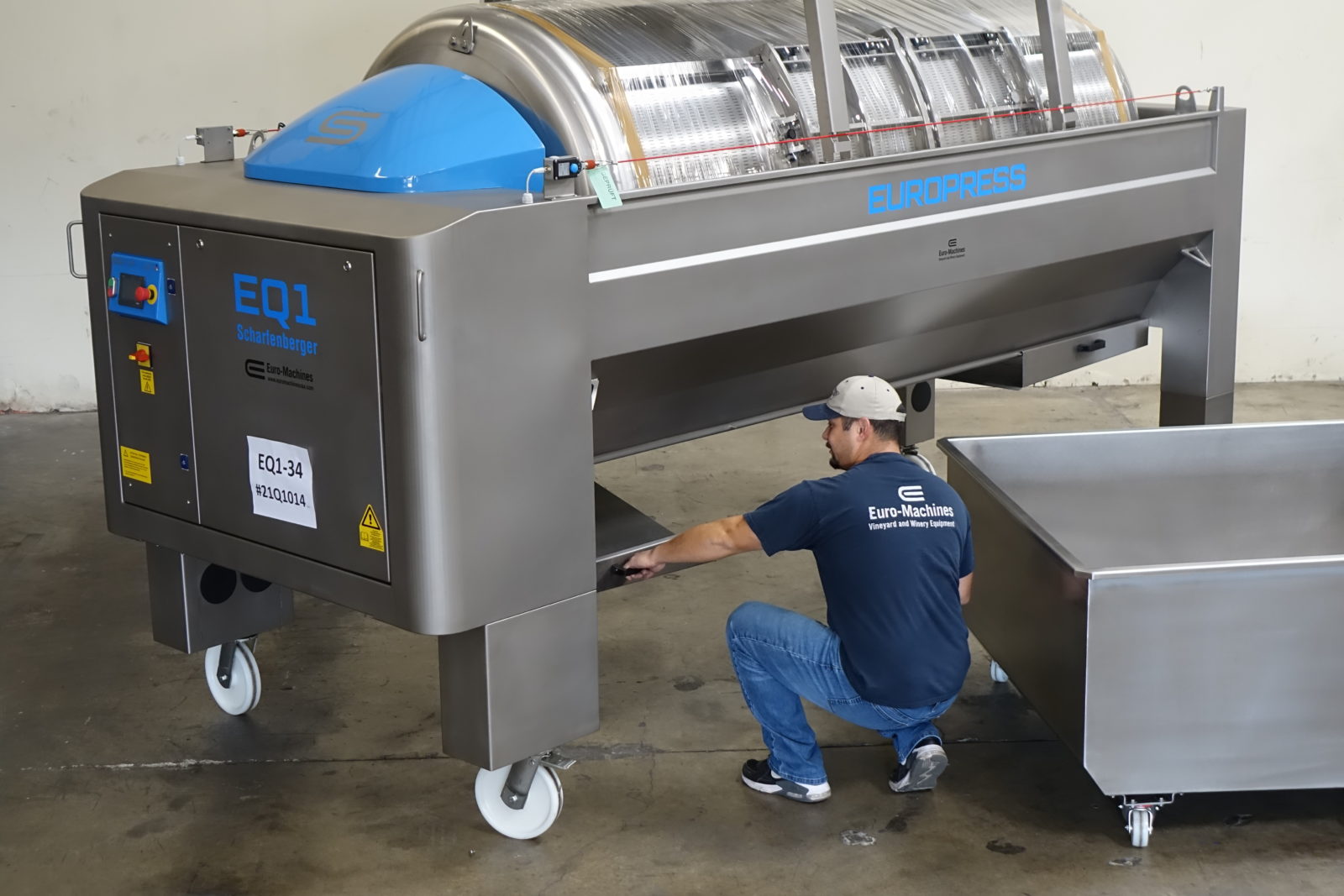

EUROPRESS GRAPE PRESS MODEL EQ1-34

  • Open style membrane press with conical slots/ Size: 3400 liters (898 gallons)
  • Approximate pressing capacities: Whole cluster 3.0 t – Destemmed/crushed 7.5 t  – Fermented must 11.0 t
  • New generation fully automatic digital control unit with 12 free adjustable programs, large 4.3″ touch screen
  • Analog controls (Emergency override)
  • Safety: Emergency stop cables on each side of the machine
  • All stainless-steel construction
  • Polished drum for easier cleaning
  • Frequency-controlled drive motor
  • Built in high efficiency compressor
  • High volume vacuum pump also functioning as pre blower
  • Muffler for noise reduction
  • Special membrane attachment also assisting for a faster pomace break up
  • Membrane composed of food grade materials, heat tolerant up to 700 C (1580 F)
  • Large volume juice tray w/ approx. 160 gal (600 liters) and 2” Tri Clover fitting
  • Removable juice tray outlet screen
  • Special pomace emptying bars underneath the membrane for faster emptying cycles
  • On four swivel wheels and with four handles for easy moving
  • Motors: 230 V / 60 cycles / 3 phases
  • Large infill opening with 2 sliding doors 48”x19” (1200 x 500 mm)
  • Door detector – No program starts while door open
  • W/o central infeed (Can be added as an option anytime)
  • Dimensions: Length 159” (4050 mm), Width 63” (1595 mm), Height 76” (1931 mm)

INCLUDED OPTIONS:

  • Press leg extension: 40 cm
  • Increased volume (1600 L) of the centered juice tray, + 40 cm (15.7”) in height

Hopper available
