Crushpad

View Product

Independent Crushing Unit-TM 700

Independent Crusher Unit                                                     TM 700

-Height adjustable frame
-All Stainless Steel execution
-Adjustable crusher rollers for more or less squeezing of the berries

View Product

AS5

SCHARFENBERGER, DESTEMMER-CRUSHER

− Stainless steel construction
− Destemmer basket in stainless steel-available sizes: 22/18 or 25/22 mm round holes
− Basket and shaft can be taken out very quickly
− Shaft with adjustable paddles in rubber
− Free run juice collecting trough, with 2” T/C clamp drain fitting
− Emergency stop button
− Dosing feed auger with variable frequency drive
− Capacity: 3 to 5 tons per hour
− Motor sizes: 2.5 and 0.8 hp; Available in either 230 or 460 volt, 60 cycles, 3 phase
− Mechanical variable speed motor for the drum and shaft
− Weight: 298 kg (656 lbs)
− Overall dimensions: 75” x 32” x 55”

OPTIONAL ACCESSORIES
– Crushing unit with adjustable rubber crusher rollers for more or less squeezing of the berries; 1.5 hp Motor.
– Stainless Steel under-frame, adjustable in height for a clearance of max 51” below the crusher unit.
– Additional destemming basket in Stainless steel or Polyethylene–available sizes: 22/18 or 25/22 mm round holes.
– Roller Sorter
And much more….!

View Product

AS10

SCHARFENBERGER, DESTEMMER-CRUSHER

− Stainless steel construction
− Destemmer basket in stainless steel-available sizes: 22/18 or 25/22 mm round holes
− Basket and shaft can be taken out very quickly
− Shaft with adjustable paddles in rubber
− Free run juice collecting trough, with 2” T/C clamp drain fitting
− Emergency stop button
− Dosing feed auger, with variable frequency drive
− Capacity: 10 to 12 tons per hour
− Motor sizes: 3.0 and 0.8 hp; available in either 230 or 460 volt, 60 cycles, 3 phase
− Mechanical variable speed motor for basket and shaft
− Weight: 360 kg (792 lbs)
− Overall dimensions: 87” x 40” x 55”

OPTIONAL ACCESSORIES
– Crushing unit with adjustable rubber crusher rollers for more or less squeezing of the berries; 1.5 hp Motor.
– Stainless Steel under-frame, adjustable in height for a clearance of max 51” below the crusher unit.
– Additional destemming basket in Stainless steel or Polyethylene–available sizes: 22/18 or 25/22 mm round holes.
– Roller Sorter
And much more….!

View Product

AS15

SCHARFENBERGER, DESTEMMER-CRUSHER

− Stainless steel construction
− Destemmer basket in stainless steel-available sizes: 22/18 or 25/22 mm round holes
− Basket and shaft can be taken out very quickly
− Shaft with adjustable paddles in rubber
− Free run juice collecting trough, with 2” T/C clamp drain fitting
− Emergency stop button
− Dosing feed auger, with variable frequency drive
− Capacity: 13 to 15 tons per hour
− Motor sizes: 3.0 and 0.8 hp; available in either 230 or 460 volt, 60 cycles, 3 phase
− Mechanical variable speed motors for basket and shaft
− Weight: 390 kg (836 lbs)
− Overall dimensions: 95” x 40” x 55”

OPTIONAL ACCESSORIES
– Crushing unit with adjustable rubber crusher rollers for more or less squeezing of the berries; 1.5 hp Motor.
– Stainless Steel under-frame, adjustable in height for a clearance of max 51” below the crusher unit.
– Additional destemming basket in Stainless steel or Polyethylene–available sizes: 22/18 or 25/22 mm round holes.
– Roller Sorter
And much more….!

View Product

AS25

SCHARFENBERGER, DESTEMMER-CRUSHER

− Stainless steel construction
− Destemmer basket in stainless steel-available sizes: 22/18 or 25/22 mm round holes
− Basket and shaft can be taken out very quickly
− Shaft with adjustable paddles in rubber
− Free run juice collecting trough, with 2” T/C clamp drain fitting
− Emergency stop button
− Dosing feed auger, with variable frequency drive
− Capacity: 23 to 26 tons per hour
− Motor sizes: 5.5 and 1.5 hp; available in either 230 or 460 volt, 60 cycles, 3 phase
− Variable frequency speed motor for basket and shaft
− Weight: 800 kg (1760 lbs); Overall dimensions: 108” x 40” x 65”

OPTIONAL ACCESSORIES
– Crushing unit with adjustable rubber crusher rollers for more or less squeezing of the berries; 1.5 hp Motor.
– Stainless Steel under-frame, adjustable in height for a clearance of max 51” below the crusher unit.
– Additional destemming basket in Stainless steel or Polyethylene–available sizes: 22/18 or 25/22 mm round holes.
And much more….!

View Product

AS40

SCHARFENBERGER, DESTEMMER-CRUSHER

− Stainless steel construction
− Destemmer basket in stainless steel-available sizes: 25/22 or 30/25 mm round holes
− Basket and shaft can be taken out very quickly
− Shaft with adjustable paddles in rubber
− Free run juice collecting trough, with 2” T/C clamp drain fitting
− Emergency stop button
− Dosing feed auger, with variable frequency drive
− Capacity: 30 to 40 tons per hour
− Motor sizes: 7.5 and 2.0 hp; available in either 230 or 460 volt, 60 cycles, 3 phase
− Mechanical variable speed motor for basket and shaft
− Weight: 1300 kg (2890 lbs)
− Overall dimensions: 139” x 40” x 79”

OPTIONAL ACCESSORIES
– Crushing unit with adjustable rubber crusher rollers for more or less squeezing of the berries; 3.0 hp Motor.
– Stainless Steel under-frame, adjustable in height for a clearance of max 51” below the crusher unit.
– Additional destemming basket in Stainless steel or Polyethylene–available sizes: 22/18 or 30/25 mm round holes.
And much more….!

View Product

AS60

SCHARFENBERGER, DESTEMMER-CRUSHER

− Stainless steel construction
− Destemmer basket in stainless steel-available in 25/22 or 30/25 mm round holes
− Basket and shaft can be taken out very quickly
− Shaft with adjustable paddles in rubber
− Free run juice collecting trough, with 2” T/C clamp drain fitting
− Emergency stop button
− Dosing feed auger, with variable frequency drive
− Capacity: 50 to 60 tons per hour
− Motor sizes: 10.0 and 2.0 hp; 230 or 460 volt, 60 cycles, 3 phase
− Mechanical variable speed motor for basket and shaft
− Weight: 1670 kg (3675 lbs); Overall dimensions: 165” x 46” x 95”

OPTIONAL ACCESSORIES
– Crushing unit with adjustable rubber crusher rollers for more or less squeezing of the berries; 4.0 hp Motor.
– Stainless Steel under-frame, adjustable in height for a clearance of max 51” below the crusher unit.
– Additional destemming basket in Stainless steel or Polyethylene–available sizes: 22/18 or 30/25 mm round holes.
And much more….!

View Product

AS80

SCHARFENBERGER, DESTEMMER-CRUSHER

− Stainless steel construction
− Destemmer basket in stainless steel-available in 25/22 or 30/25 mm round holes
− Basket and shaft can be taken out very quickly
− Shaft with adjustable paddles in rubber
− Free run juice collecting trough, with 2” T/C clamp drain fitting
− Emergency stop button
− Dosing feed auger, with variable frequency drive
− Capacity: 70 to 80 tons per hour
− Motor sizes: 10.0 and 4.0 hp; 230 or 460 volt, 60 cycles, 3 phase
− Mechanical variable speed motor for basket and shaft
− Weight: 2270 kg (4995 lbs)
− Overall dimensions: 170” x 63” x 118”

OPTIONAL ACCESSORIES
– Crushing unit with adjustable rubber crusher rollers for more or less squeezing of the berries; 7.5 hp Motor.
– Stainless Steel under-frame, adjustable in height for a clearance of max 51” below the crusher unit.
– Additional destemming basket in Stainless steel or Polyethylene–available sizes: 22/18 or 30/25 mm round holes.
And much more….!

View Product

Euroselect

SCHARFENBERGER, DESTEMMER-CRUSHER
− Capacity: up to 5 tons per hour
− All stainless steel (304) frame construction
− Four soft destem finger rollers in staggered configuration
− Conveyor belt with square opening, 25mm × 25mm
− Independent variable speed adjustment for destem rollers for first and second berry selection
− Conveyor with variable speed adjustment to optimize the destemming process
− Low height and easily accessible feed hopper
− Mobile with four lock down wheels
− Automatic cut off and emergency stop button
− Motor sizes: three motors, each 2 hp
− Approximate weight: 1,100 lbs.
− Approximate dimensions: 120″ L x 91″ H x 56″ W

OPTIONAL ACCESSORIES FOR THE EUROSELECT
Frame height adjustment to accommodate individual requirements
Independent crushing unit on own stand with Adjustable rollers for more or less squeezing

View Product

One Ton Dump Hopper-STRII

SCHARFENBERGER, ONE TON BIN DUMP HOPPER, ON LEGS
− All stainless steel construction/ with built-in stainless steel auger
− Overall dimensions: 6’ 2” L × 4’ 4” W × 9’ 8.5” H
− Motor 3-phase with variable frequency drive
− Power requirements: 220V single phase

View Product

VM2.0

SCHARFENBERGER VIBRATING DOZING TABLE
− Completely stainless steel
− With receiving hopper: 2,084mm (82”) × 1,590mm (63”)
− Approximate dimensions: 2,518mm (99”) L × 1,590mm (63”) W × 1,770mm (70”) H
− Approximate height at discharge: 975 mm (38”)
− Motor: 3 Phase, with variable frequency drive, 1.5 HP
− Power requirements: 220 Volt, Single Phase

View Product

VM2.6

Vibrating Dosing table--3



SCHARFENBERGER VIBRATING DOZING TABLE – VM 2.6
− Completely stainless steel
− With receiving hopper: 2,084mm (82”) × 1,590mm (63”)
− Approximate dimensions: 3,020mm (119”) L × 1,590mm (63”) W × 1,770mm (70”) H
− Approximate height at discharge: 980mm (38.5”)
− Motor: 3 Phase, with variable frequency drive, 1.5 HP
− Power requirements: 220 Volt, Single Phase

View Product

VS 3.6

SCHARFENBERGER VIBRATING SORTING TABLE
− Completely stainless steel
− With receiving hopper: 1,905mm (75”) × 1,930mm (76”) × 610mm (24”)
− Approximate dimensions: 3,800mm (150”) L × 1,000mm (39”) W × 1,700mm (66”) H
− Approximate height at discharge: 980mm (38.5”)
− Standard drain screen: 20 x 1.5mm or 76 x 6mm
− Motor: 3 Phase, with variable frequency drive, 1.5 HP
− Power requirements: 220 Volt, Single Phase

OPTIONS:
− Additional Sorting grid
− Additional spare grid
− Custom Frame
− Catwalks

View Product

VS 5.0

rsz_cropped--p1060696

SCHARFENBERGER VIBRATING SORTING TABLE – VS 5.0
− Completely stainless steel on swivel wheels with stabilizing legs
− With receiving hopper; 1,905mm (75”) × 1,930mm (76”) × 610mm (24”)
− Approximate dimensions: 196” L × 33.5” W × 108” H
− Approximate height at discharge: 980mm (38.5”)
− Standard drain screen: 20 x 1.5mm or 76 x 6mm
− Motor: 3 Phase, with variable frequency drive, 1.5 HP
− Power requirements: 220 Volt, Single Phase

OPTIONS:
− Additional Sorting grid
− Additional spare grid
− Custom Frame
− Catwalks

View Product

FB 40/17

IMG_0634

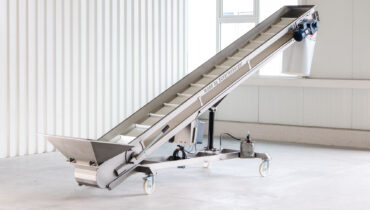

SCHARFENBERGER, INCLINE BELT CONVEYOR 40/17
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 67” (1704mm) Maximum 86” (2200mm)
− Width of the belt: 16” (400mm)
− Dimensions of feeding Hopper: 37” × 32” (950mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 1.5HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 40/22

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 40/22
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 90” (2277mm) Maximum 125” (3177mm)
− Width of the belt: 16” (400mm)
− Dimensions of feeding Hopper: 37” × 32” (950mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 1.5HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 40/28

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 40/28
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 112” (2851mm) Maximum 148” (3751mm)
− Width of the belt: 16” (400mm)
− Dimensions of feeding Hopper: 37” × 32” (950mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 1.5HP
− Power requirements: 220 Volt, Single Phase



OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 40/34

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 40/34
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 135” (3424mm) Maximum 168” (4261mm)
− Width of the belt: 16” (400mm)
− Dimensions of feeding Hopper: 37” × 32” (950mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 2.0HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 40/40

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 40/40

− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 158” (3998mm) Maximum 191” (4863mm)
− Width of the belt: 16” (400mm)
− Dimensions of feeding Hopper: 37” × 32” (950mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 3.0HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 60/17

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 60/17
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 67” (1704mm) Maximum 86” (2200mm)
− Width of the belt: 24” (600mm)
− Dimensions of feeding Hopper: 45” × 32” (1150mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 2.0HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 60/22

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 60/22
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 90” (2277mm) Maximum 125” (3177mm)
− Width of the belt: 24” (600mm)
− Dimensions of feeding Hopper: 45” × 32” (1150mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 2.0HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 60/28

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 60/28
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 112” (2851mm) Maximum 148” (3753mm)
− Width of the belt: 24” (600mm)
− Dimensions of feeding Hopper: 45” × 32” (1150mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 2.0HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

FB 60/34

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 60/34
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 135” (3424mm) Maximum 168” (4261mm)
− Width of the belt: 24” (600mm)
− Dimensions of feeding Hopper: 45” × 32” (1150mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 3.0HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°

View Product

FB 60/40

IMG_0634

SCHARFENBERGER, INCLINE BELT CONVEYOR 60/40
− Completely stainless steel construction
− Discharge Height: At an incline of 35°, 158” (3998mm) Maximum 191” (4863mm)
− Width of the belt: 24” (600mm)
− Dimensions of feeding Hopper: 45” × 32” (1150mm × 800mm)
− Motor: 3 Phase, with variable frequency drive, 3.0HP
− Power requirements: 220 Volt, Single Phase

OPTIONS for the INCLINE BELT CONVEYORS:
A. Large feeding hopper for ½ ton micro bin, 63” x 63”(1600mm x 1600mm)
B. Swiveling chute at discharge end (270°)

View Product

TS 3.0

GRAPE SELECTION BELT TYPE TS 3.0
-Stainless Steel Version
-4 directional wheels, 2 with brakes
– Belt in food grade material
– Quick belt adjustment device
– Without hopper
– Frequency driven motor
– Width: 800 mm
– Length: 3000 mm
– Motor 3 phase, w/variable frequency drive 15hp
– Power requirement: 220 volt single phase

AVAILABLE OPTIONS:
– Additional 200 mm leg extensions to accommodate discharge height for macro bins
– Additional 500mm extension in length

View Product

Model APS

SCHARFENBERGER AUTOMATIC POST SORTING TABLE              MODEL APS

-Two stage automatic sorting machine that uses vibration and precision airflow to eliminate MOG.
– All Stainless Steel construction
– Capacity between 4-6 t/h
– Voltage: 230V, 60 cycles, 3 phase
– Removable receiving sorting grid
– Different sorting grid sizes available
– Adjustable speed of airflow and vibration
– Easy to clean

View Product

Tribaie 12

AMOS SORTER           TYPE, TRIBAIE 12

– 2658mm x 2553mm x 2408mm
– Length: 3000 mm
– Motor: 4kw
– Appx. Capacity: 5-6 t/h
– Output Height: 961 mm
– Stainless Steel Version
– Vibrating Receiving Table (VRT) fitted with a distribution system (see options)
and level sensor for flow regulation and a drop zone with collection pan.
– Disc separator (SPG) (see options) with a series of toothed discs to capture plant debris as the fruit passes through.
– Separation drum for sorting the fruit into either whole grapes or split grapes
– Separates liquid from solids before discharge

AVAILABLE OPTIONS:
– Cleaning and separation of waste
– Shorter circuit which excludes densimetric process
– Heat exchanger in densimetric tank
– Adaption of inversion pump
– Tri-bath available on existing tribaie
– Cooling system for the bath of juice (0 to 2C°)

View Product

Tribaie 20

AMOS SORTER                                                                     TYPE, TRIBAIE 20

– 3207mm x 3344mm x 2423mm
– Length:  3000 mm
– Motor: 6kw
– Appx. Capacity: 8-10 t/h
– Output Height: 961 mm
– Stainless Steel Version
– Vibrating Receiving Table (VRT) fitted with a distribution system (see options)
and level sensor for flow regulation and a drop zone with collection pan.
– Disc separator (SPG) (see options) with a series of toothed discs to capture plant
debris as the fruit passes through.
– Separation drum for sorting the fruit into either whole grapes or split grapes
– Separates liquid from solids before discharge

AVAILABLE OPTIONS:
– Cleaning and separation of waste
– Shorter circuit which excludes densimetric process
– Heat exchanger in densimetric tank
– Adaption of inversion pump
– Tri-bath available on existing tribaie
– Cooling system for the bath of juice (0 to 2C°)

View Product

Tribaie 40

AMOS SORTER                                                                     TYPE, TRIBAIE 40

-4207mm x 2344mm x 2423mm
-Length:  3000 mm
-Motor: 8kw
-Appx. Capacity: 18-20 t/h
-Output Height: 961 mm
-Stainless Steel Version
-Vibrating Receiving Table (VRT) fitted with a distribution system (see options)
and level sensor for flow regulation and a drop zone with collection pan.
-Disc separator (SPG) (see options) with a series of toothed discs to capture plant debris
as the fruit passes through.
-Separation drum for sorting the fruit into either whole grapes or split grapes
-Separates liquid from solids before discharge

AVAILABLE OPTIONS:
-Cleaning and separation of waste
-Shorter circuit which excludes densimetric process
-Heat exchanger in densimetric tank
-Adaption of inversion pump
-Tri-bath available on existing tribaie
-Cooling system for the bath of juice (0 to 2C°)
