Europress P20 – PNW

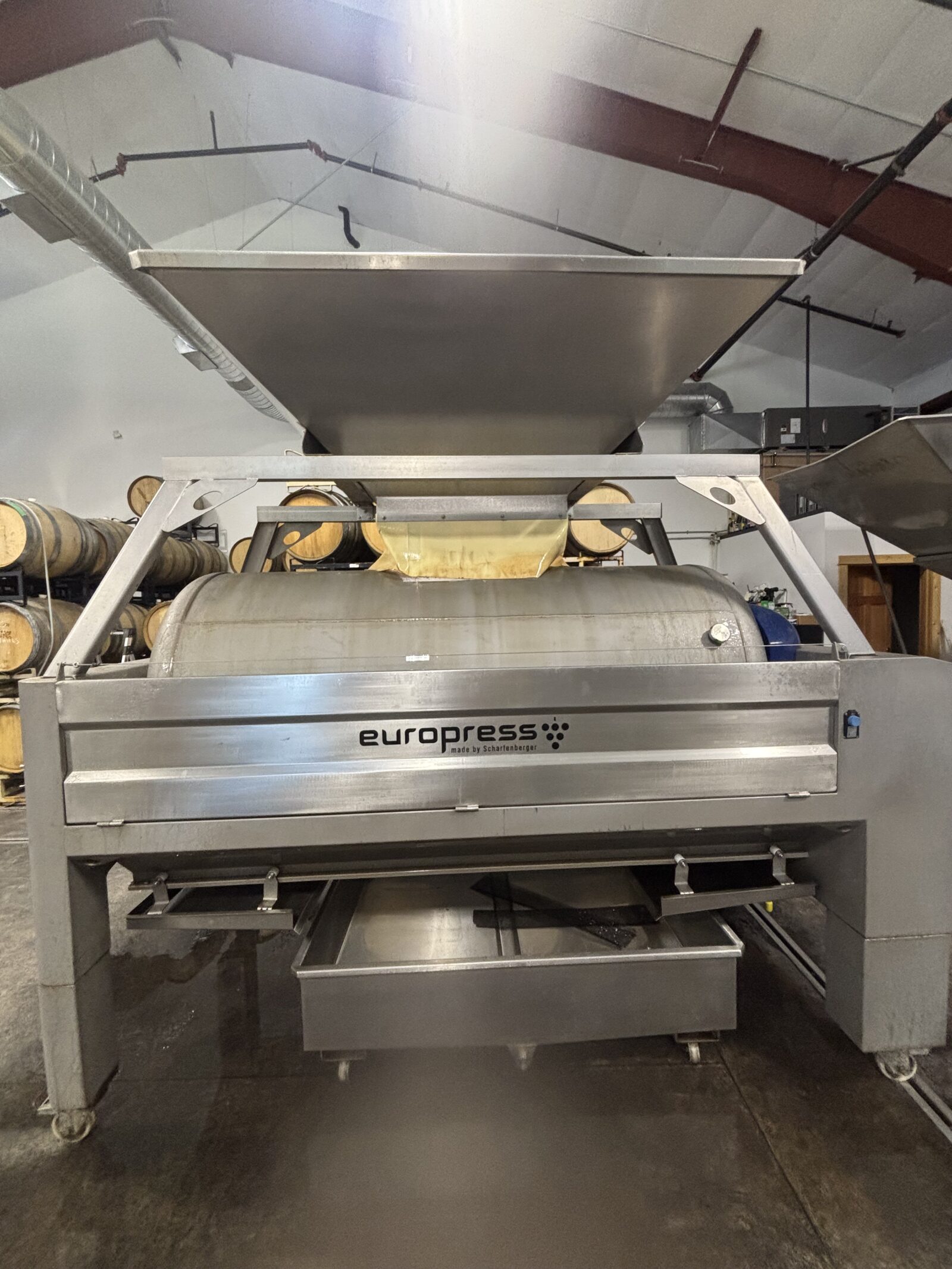

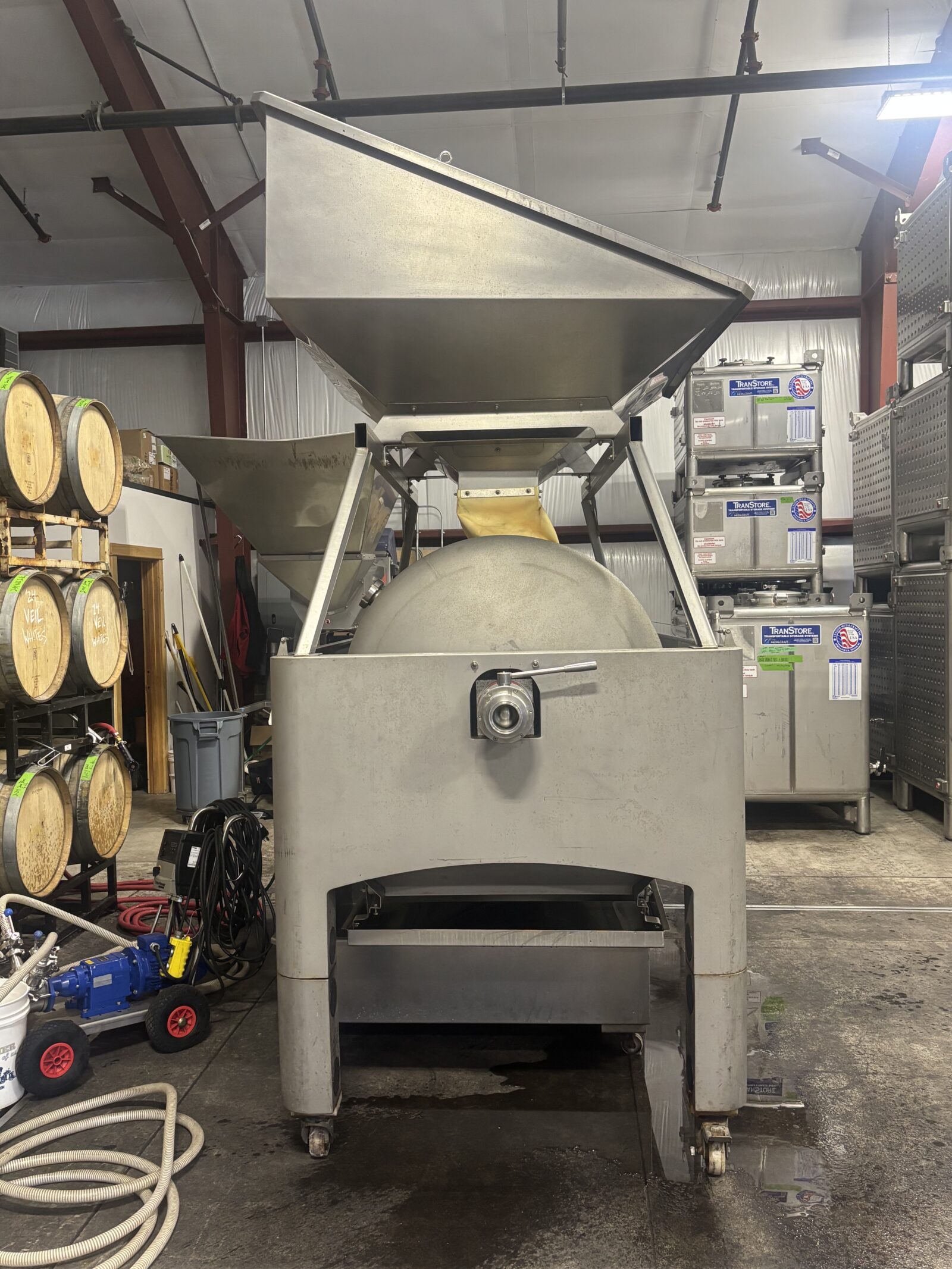

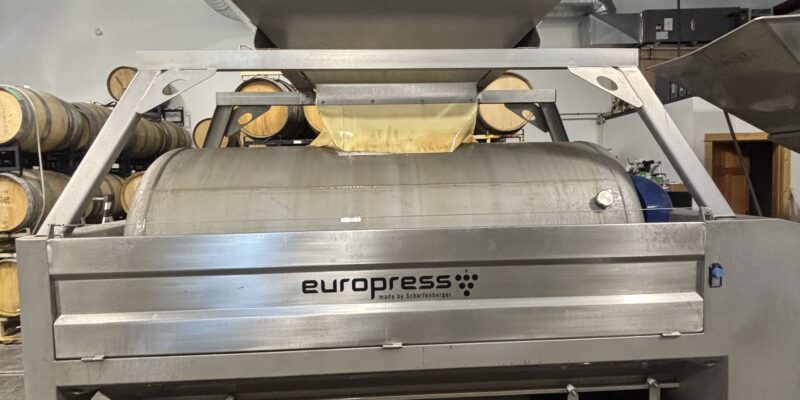

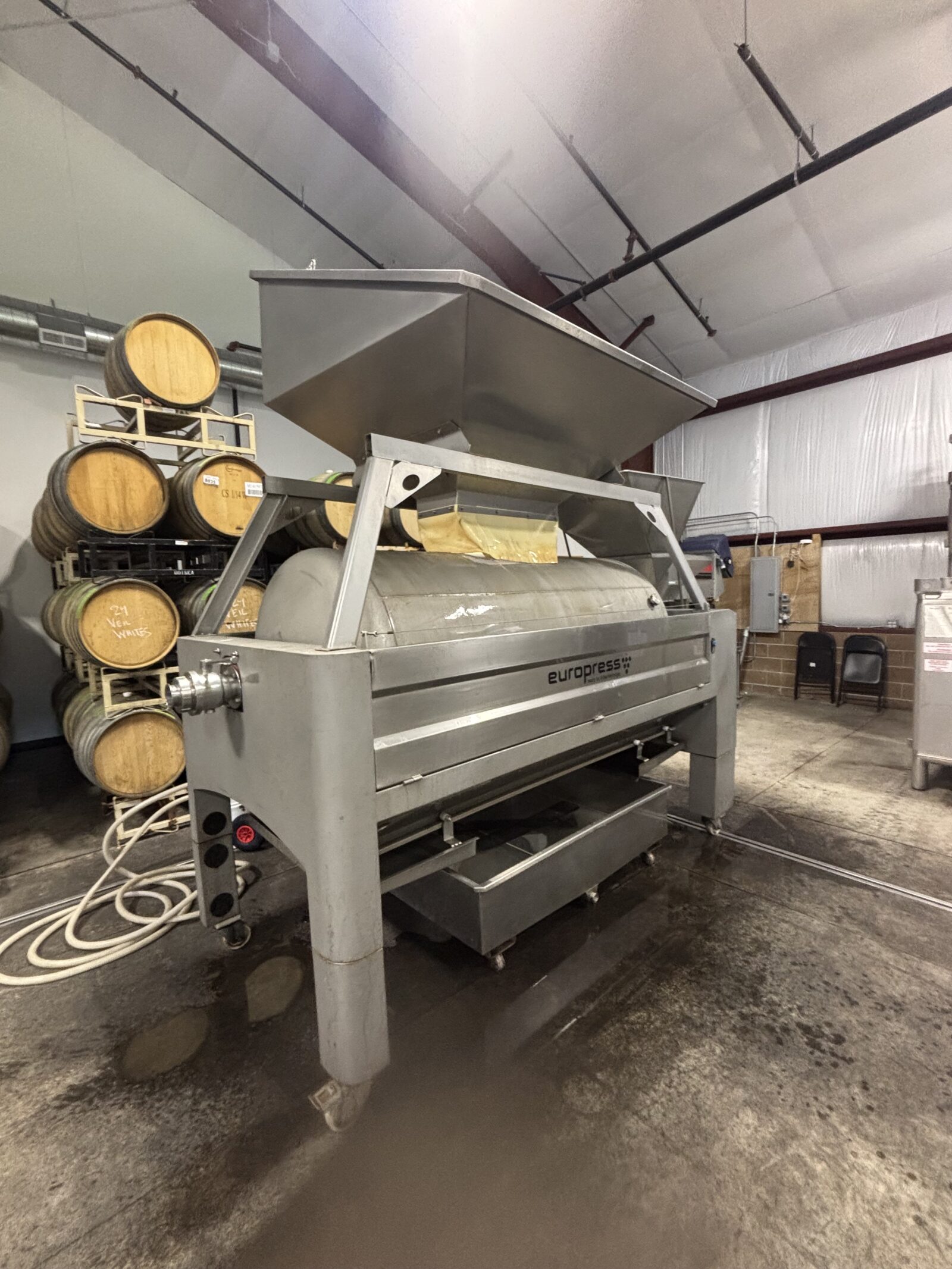

EUROPRESS, GRAPE PRESS P20 – PNW

• Open style membrane press
• Size: 2000 liters (528 gallons)
• Approximate pressing capacity: Whole cluster: 1.5 ton De-stemmed/ crushed: 4.5 tons Fermented must: 7 tons

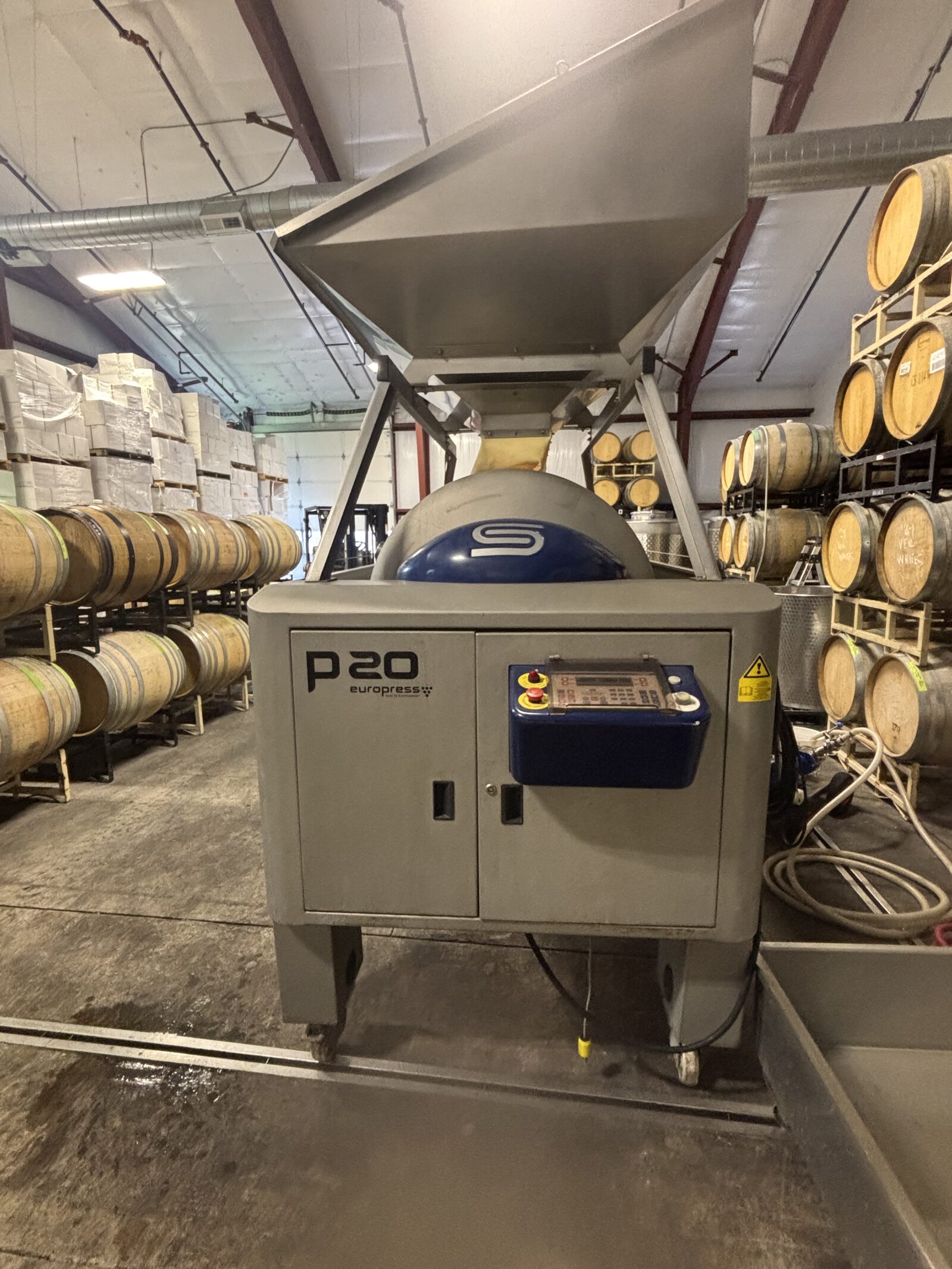

• Digital controls: solid state micro processor, fully automatic to 2.0 bar pressure with 12 pre set programs
• Touch screen display
• Press basket: open style, with large de-juicing area with conical slots
• Safety: emergency stop cables on each side of machine
• Motors: 3 phase,  230 volt

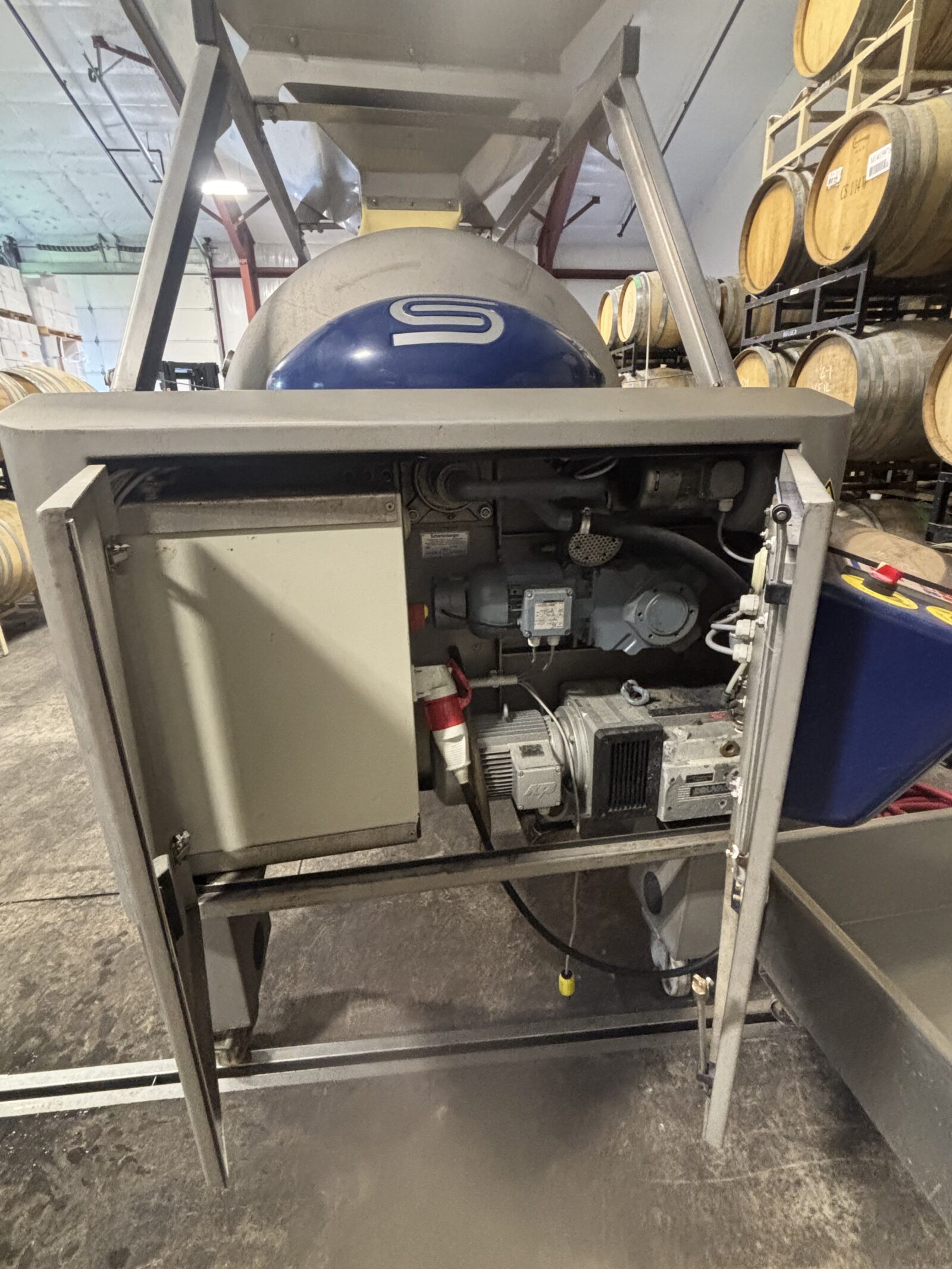

• Integrated vacuum pump and pre-blower: 0.9 hp
• Integrated air compressor: 6.1 hp, dry running
• Main drive motor: single speed, left and right rotation, 1.0 hp
• Drum, frame and juice tray construction: 304 stainless
• Double sliding door, 1000 mm × 500 mm (39” × 20”)
• Juice tray size: 650 liters (170 gallons), 2” outlet located in center of tray with tri-clamp fitting
• Pomace emptying aid under the membrane for quicker pomace removal
• Muffler for noise reduction
• Removable juice tray outlet screen
• On four swivel wheels with four handles for easy moving
• Approximate Dimensions: 3292 mm L × 1394 mm W × 1546 mm H (130” L × 55” W × 61” H)
• Whole cluster hopper
• CIF valve

ASKING: $30,000.00

CONTACT: Kyle Lattimer  [email protected]
