Romfil Crossflow RXF-G-2-S

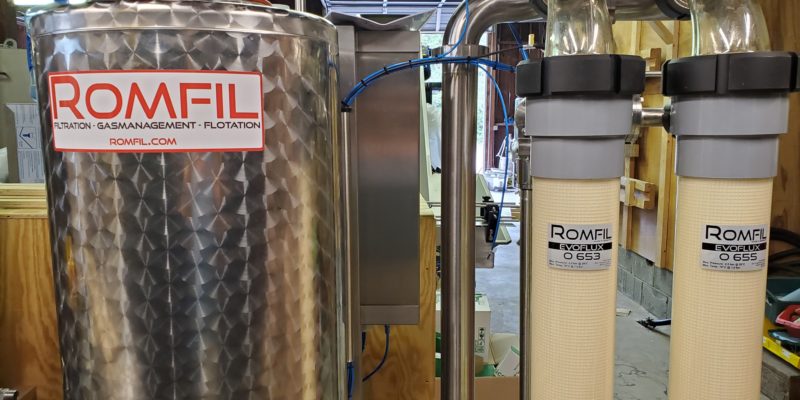

ROMFIL CROSSFLOW WINE FILTER – Model RXF-G-2-S

• Filtration performance up to 2,500 l/h (660 gal/h)
• Dimensions: 1,300mm x 800mm x 1,800mm (51”x 32”x 71”); Weight: 200 kg (441 lbs)
• Cross flow filter w/ 2 modules, 20 m² of membrane area (216 ft²)
• Touch panel (7.0”) designed for automatic filtration
• Easy cleaning with CIP
• Protection against running dry, high and low-pressure exposure
• 230V, 60 cycles, 3-phase; 2” Tri clamp
• Centrifugal pump for recirculation 1400 rpm, 1.5kw, 240V, 60hz
• Feed and pressure pump w/frequency convert .55kw, 240V, 60hz
• Cleaning tank Volume- appx 32 gal
• Programmable automatic gas pressure back flushing (CO2, NS or air)
• Stainless steel frame with locking casters for easy transport
• Electromagnetic flow meter IDM
• Manual valving for lowering number of modules

Available Options for RXF-G-2-S

• Vario Function
• Set for extension to 3rd module
• One set of seals and plugs for modules
