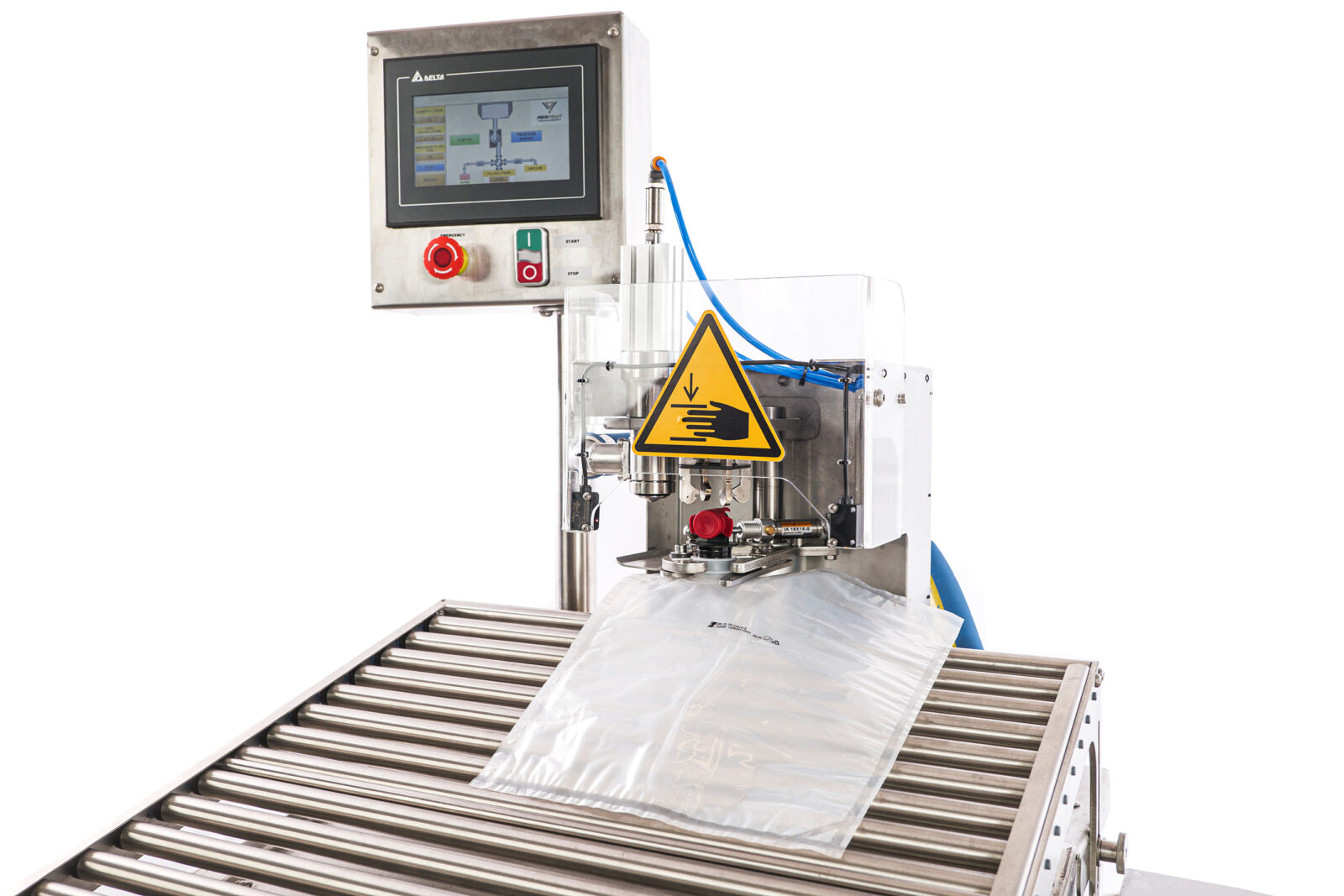

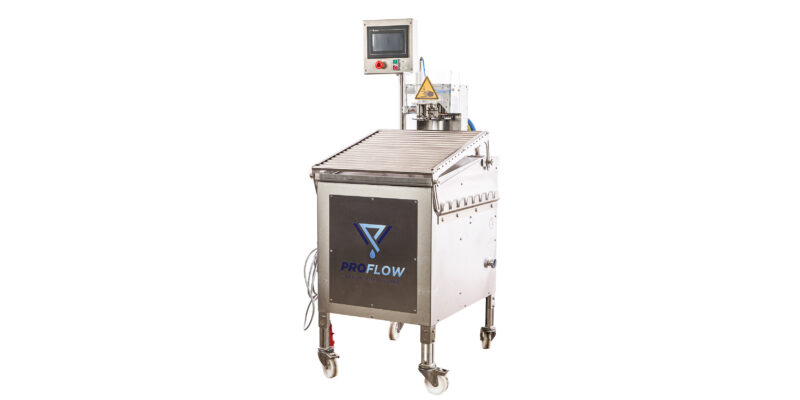

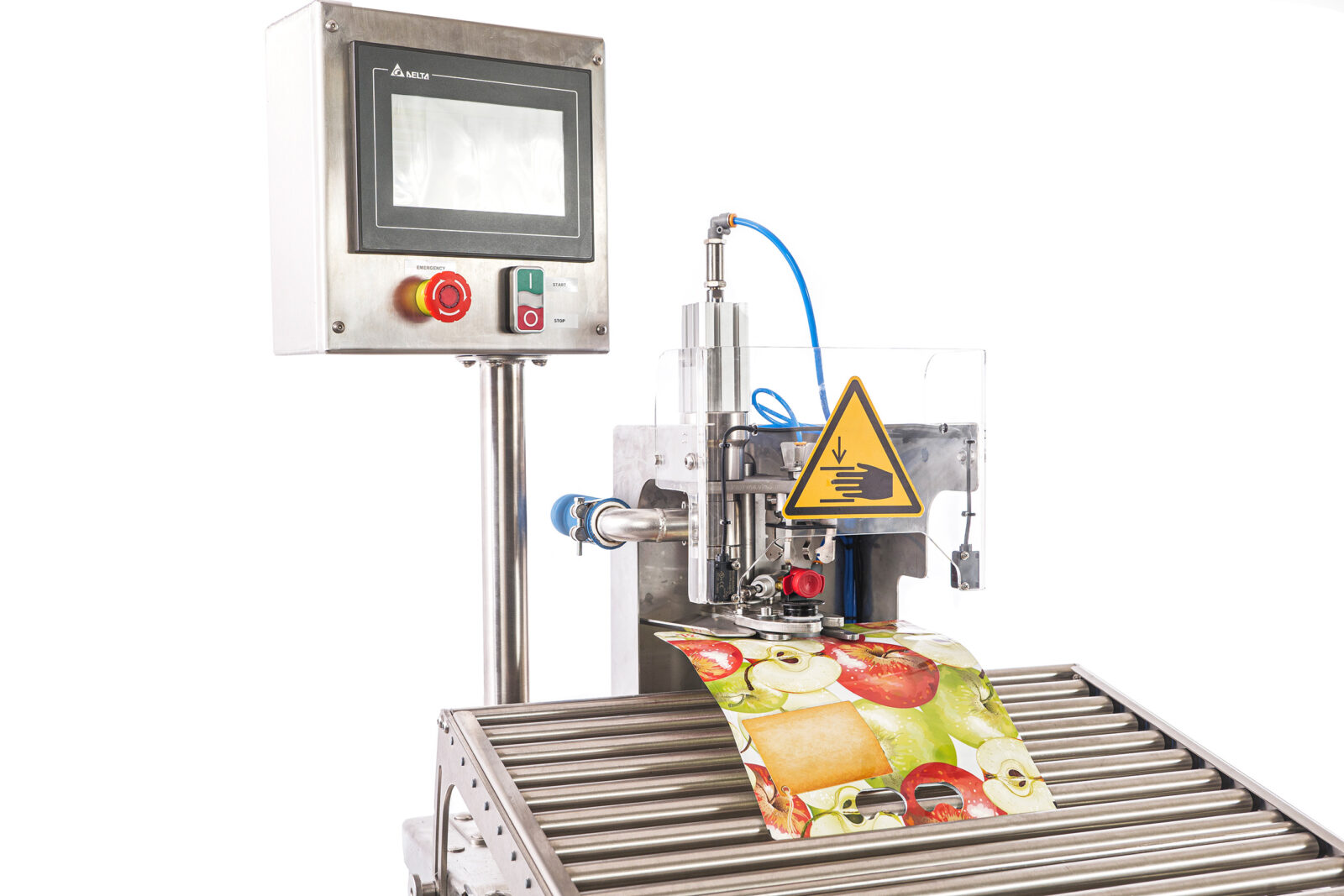

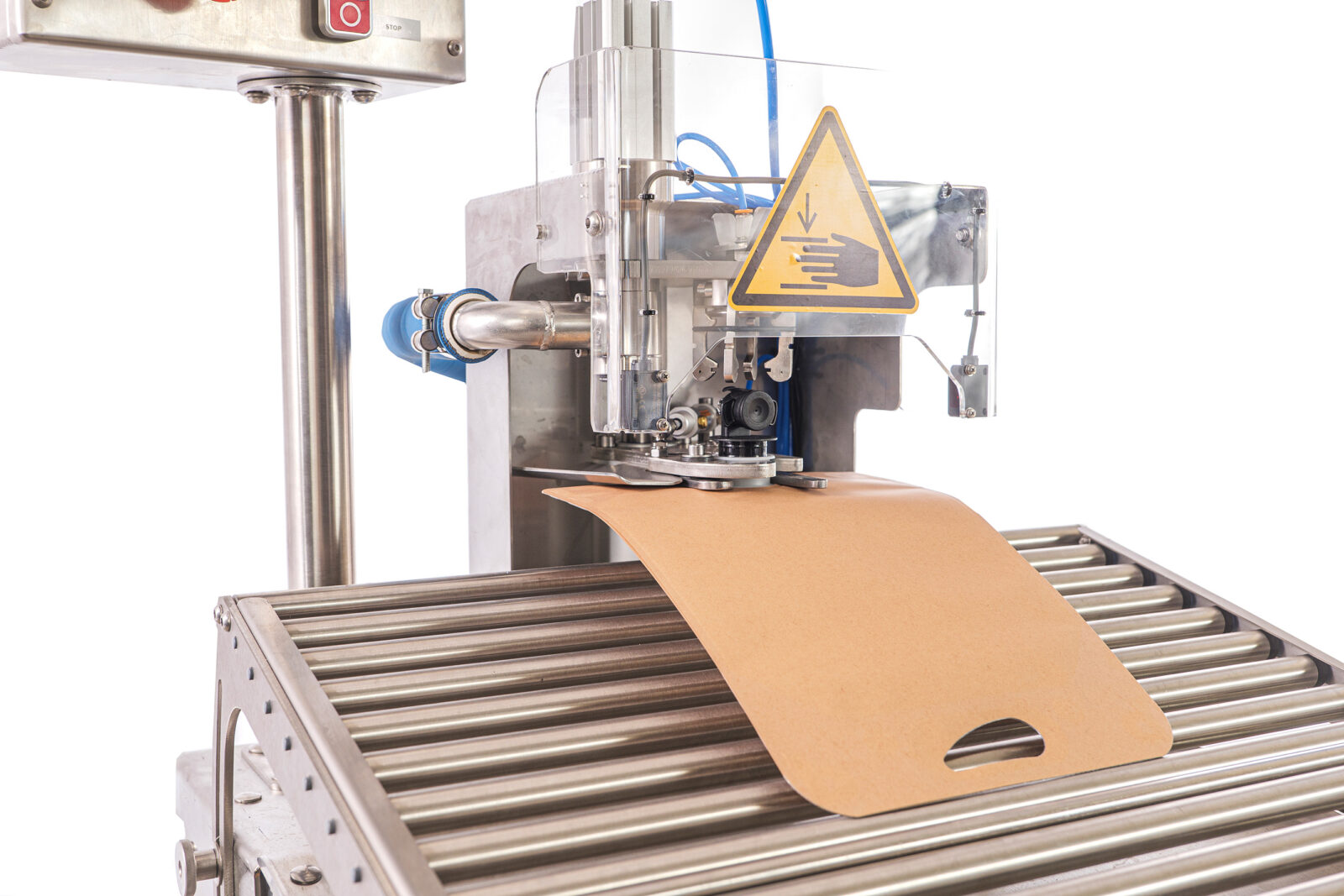

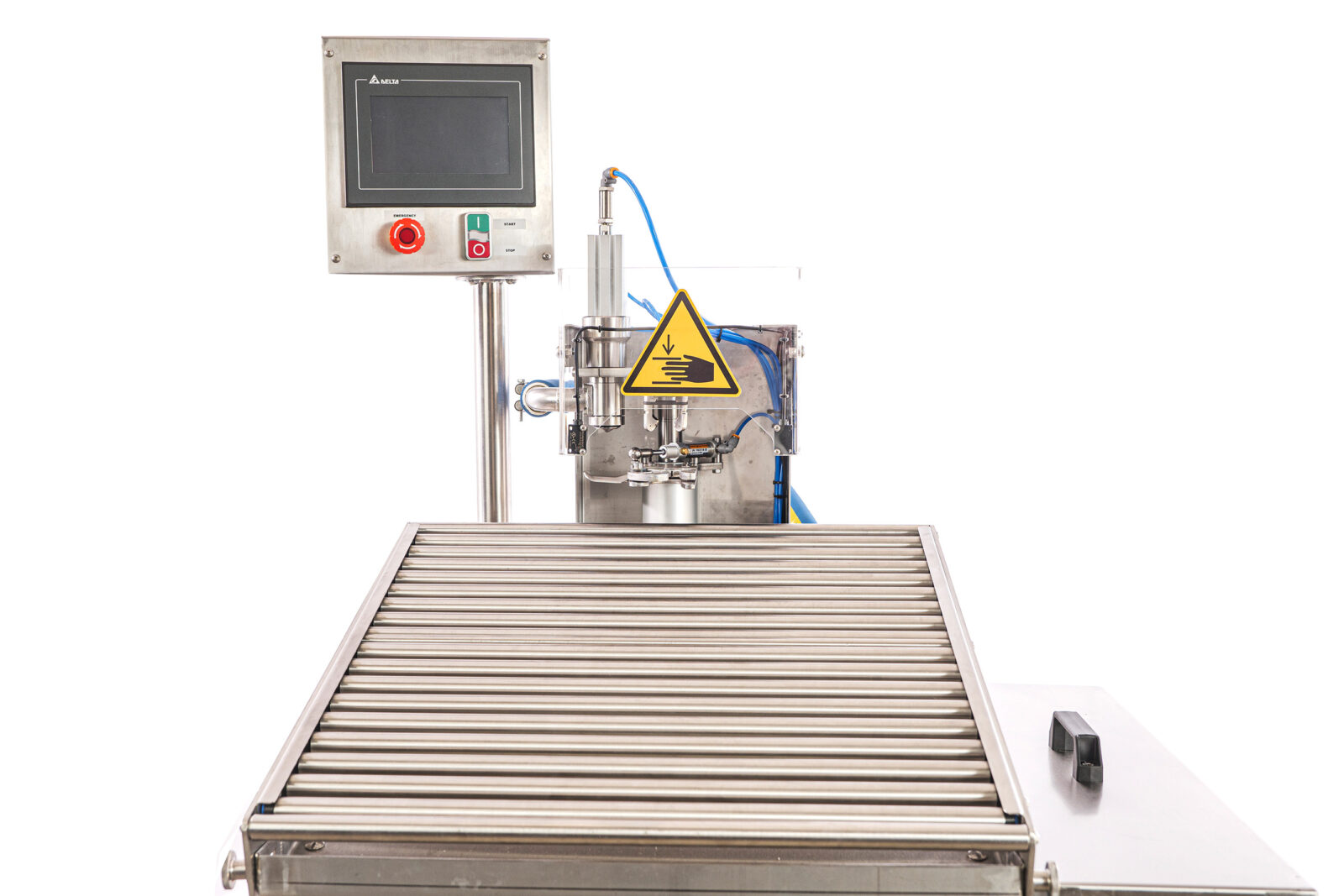

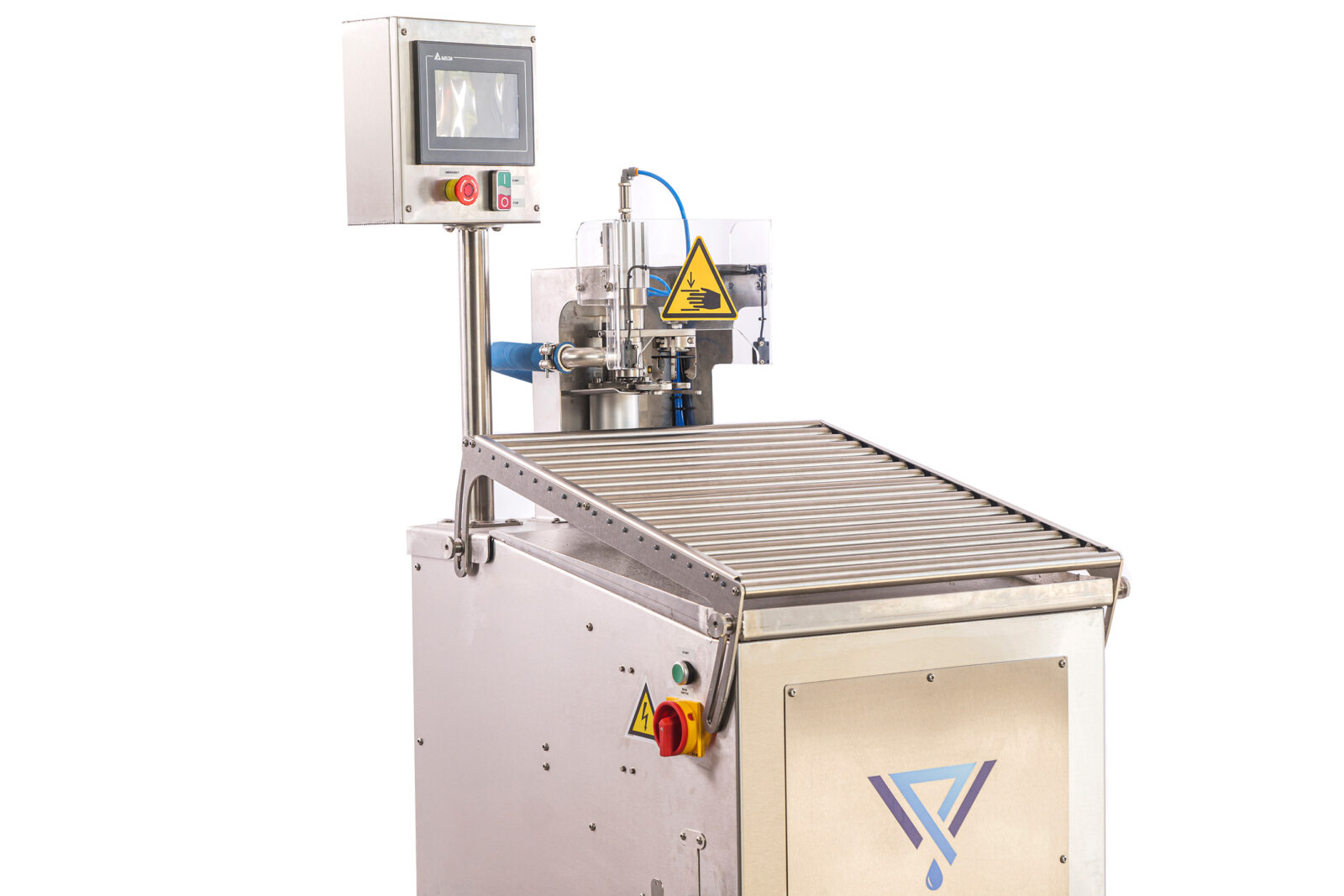

The AUTOFLOW is a fully automatic filling machine designed to fill hot and cold liquids into Bag-in-Box and Stand-up Pouch packaging. The machine automatically removes the cap, vacuums the bag, fills it, and reseals it, ensuring a fast, hygienic, and efficient filling process.
Equipment:
- high-quality automatic filling head ensures stable and smooth flow
- touchscreen panel with a multi-language menu
- adjustable filling table for different bag and pouch sizes
- easy to clean with external rinsing and CIP cleaning
- Wide Range of Liquids: Suitable for filling various liquids including juice, wine, milk, broth, oil, cream, coffee, ice cream mix, soap, motor oil, chemicals, and more
Advanced Safety System:
- integrated pressure sensor protection stops the filling process if the bag is incorrectly positioned or incompatible
- preventing overpressure or rupture
Options:
- Changeable Filling Heads: Optional heads for various closures: taps, milk tubes, screw caps, standard caps, etc.
- Buffer Tank:
- Includes a detachable buffer tank for hot filling
- reducing foaming during hot filling
- easily integrates with pasteurization systems
Technical Data:
- Capacity up to ~300 units of 3 L packages per hour (depending on the pump)
- weight: 125kg
- length: 785 mm
- width: 955 mm
- table width: 656 mm
- height: 1,570 (+100) mm
- table height: 920 (+100) mm
- filling range:
- Bag in Box: 1–30 L
- Stand-up Pouch: 0,75–5 L
- optional filling gun for 220 L bags
