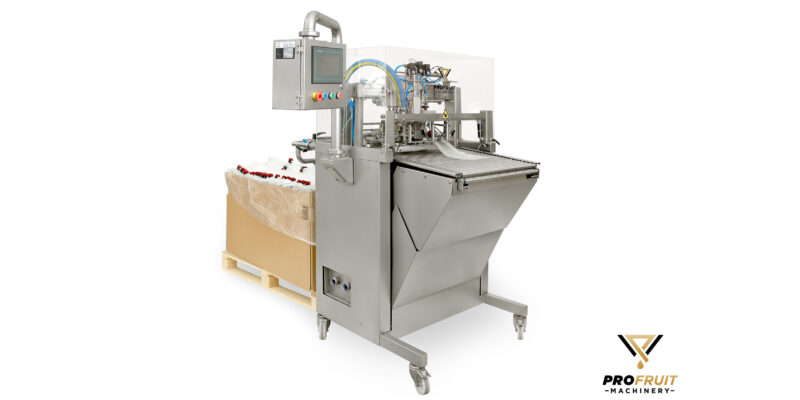

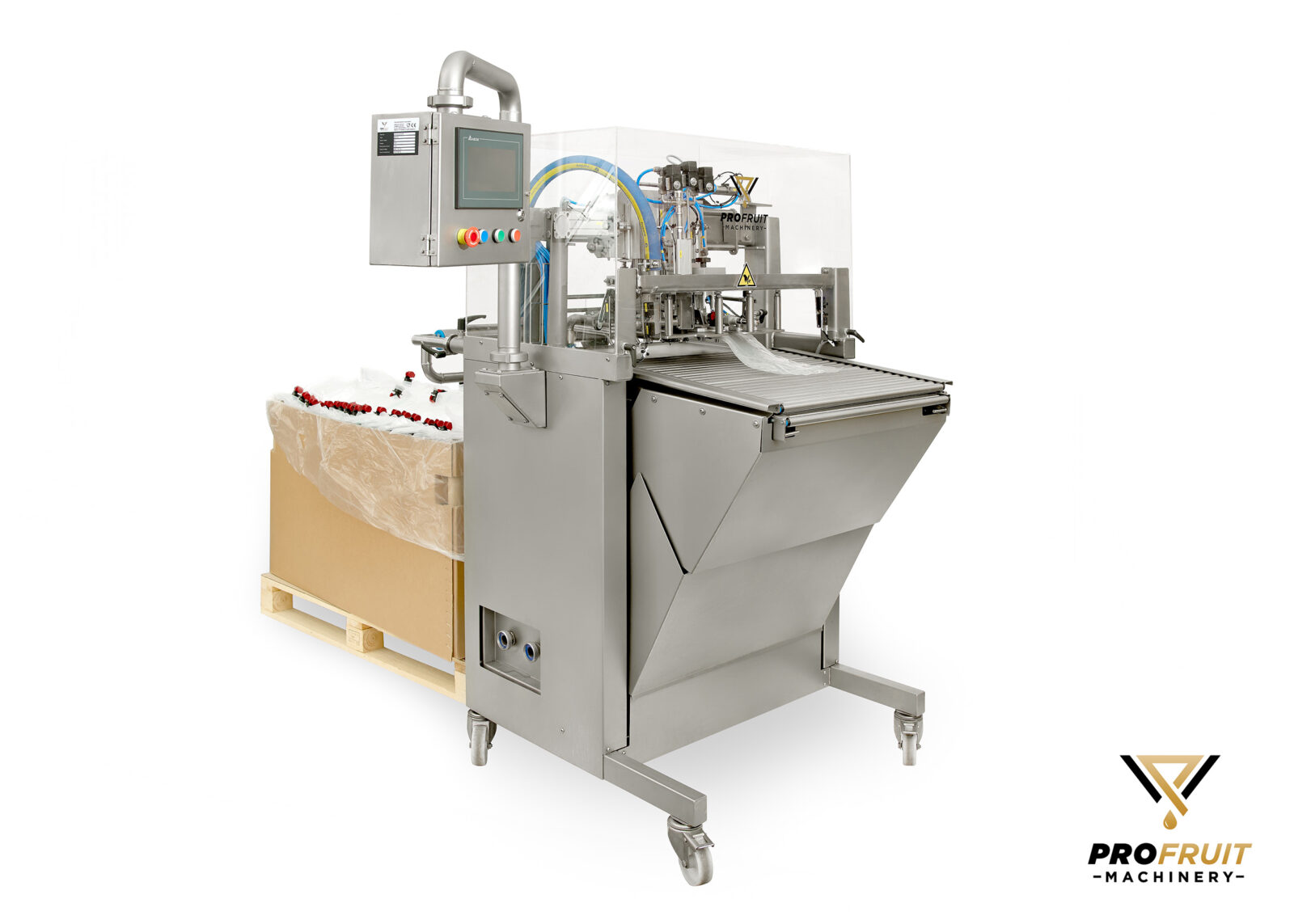

The MAXIFLOW is a fully automatic filling system designed for webbed and individual Bag-in-Box bags, as well as Stand-up Pouch packaging. After inserting the first bag, the machine automatically removes the cap, fills the liquid, reseals the bag, and releases it, continuing the process with the next bag.This enables continuous filling process and the operator only needs to remove the filled bags.
Equipment:

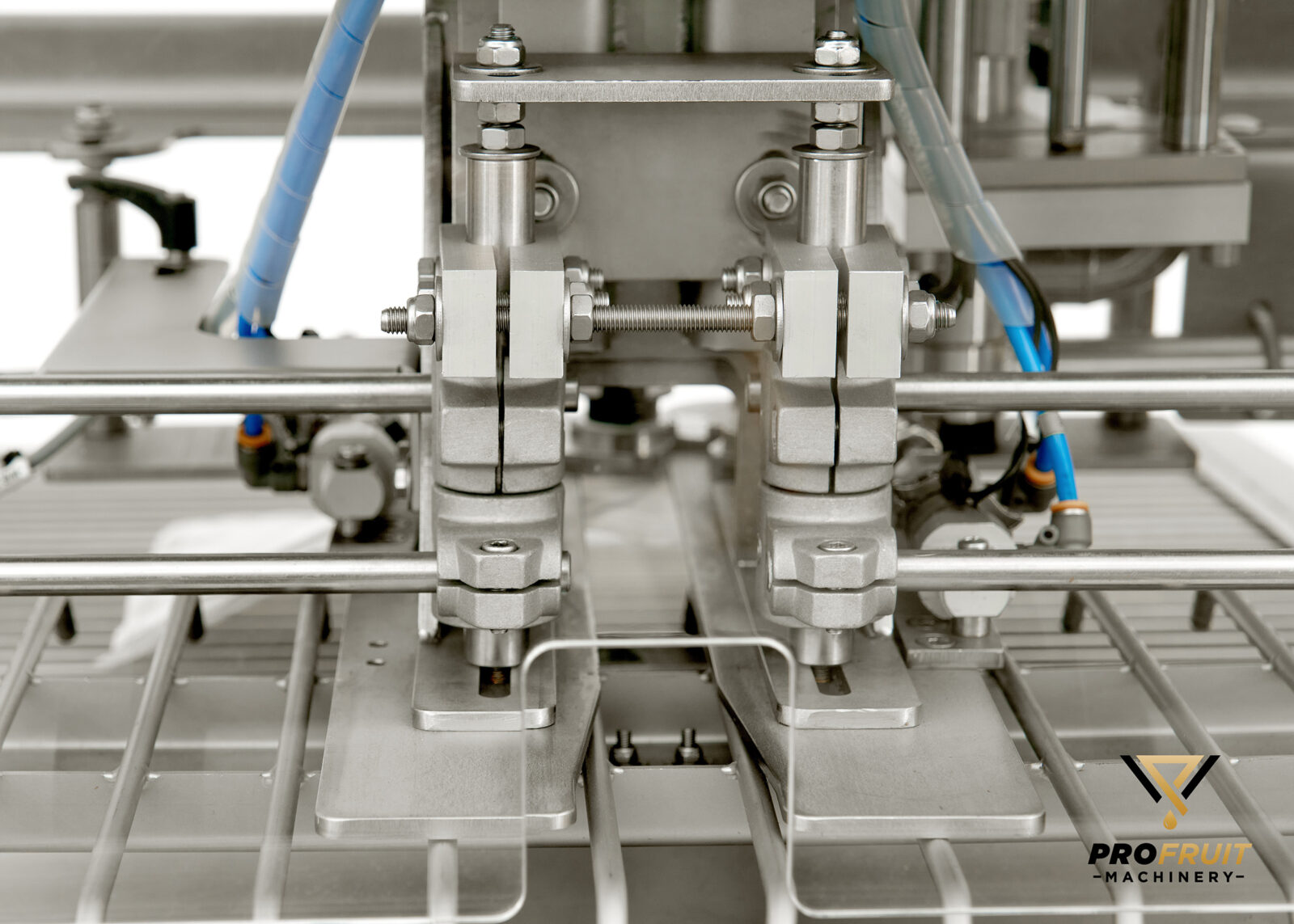

- fully automatic operation: capping, filling and releasing
- manual bag insertion also supported
- suitable for both hot and cold filling
- suitable for packages with tap closure
- integrated laser safety mechanism for maximum operational safety
- constructed from AISI 304 stainless steel
- touchscreen panel and a multi-language menu for intuitive operation

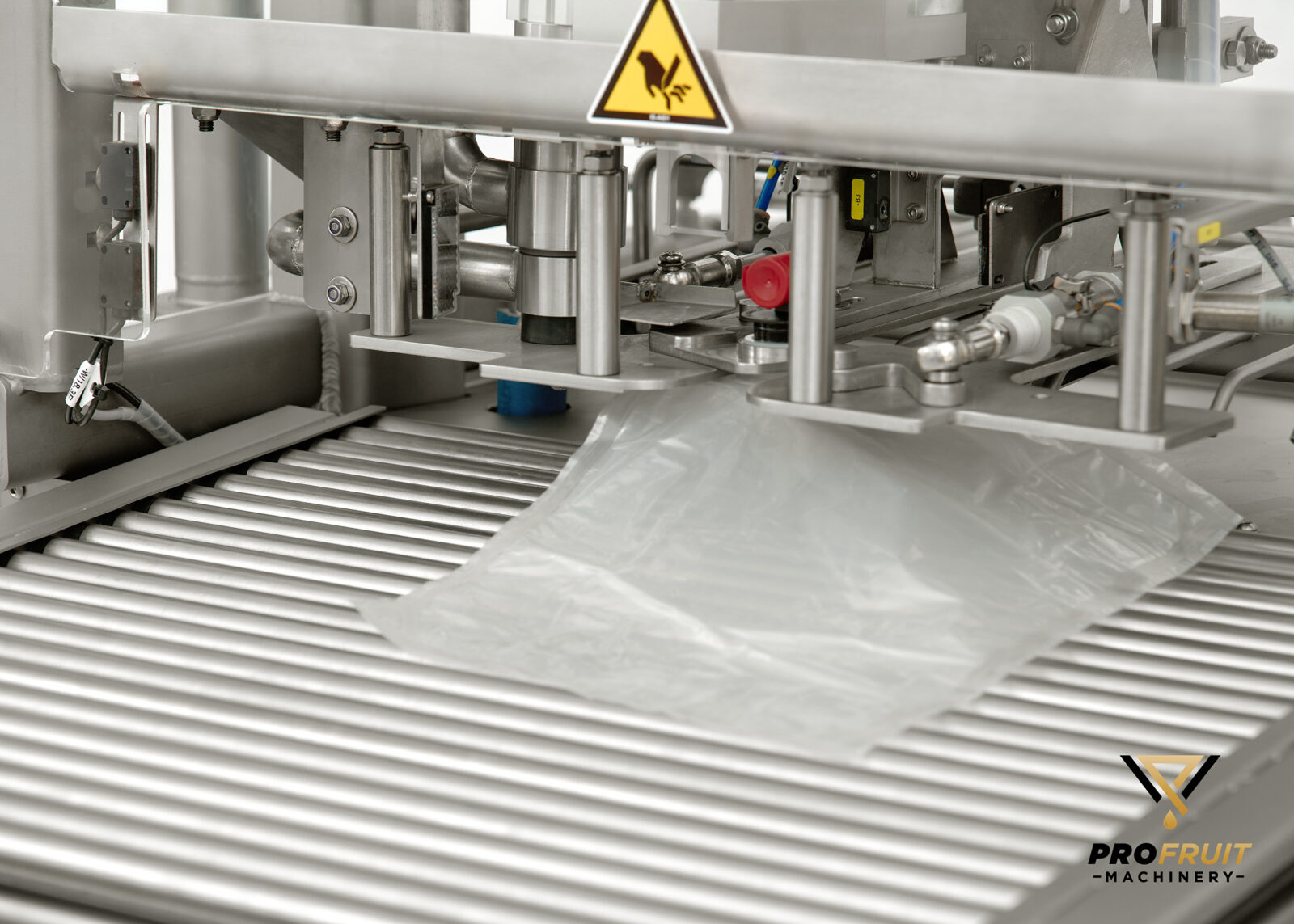

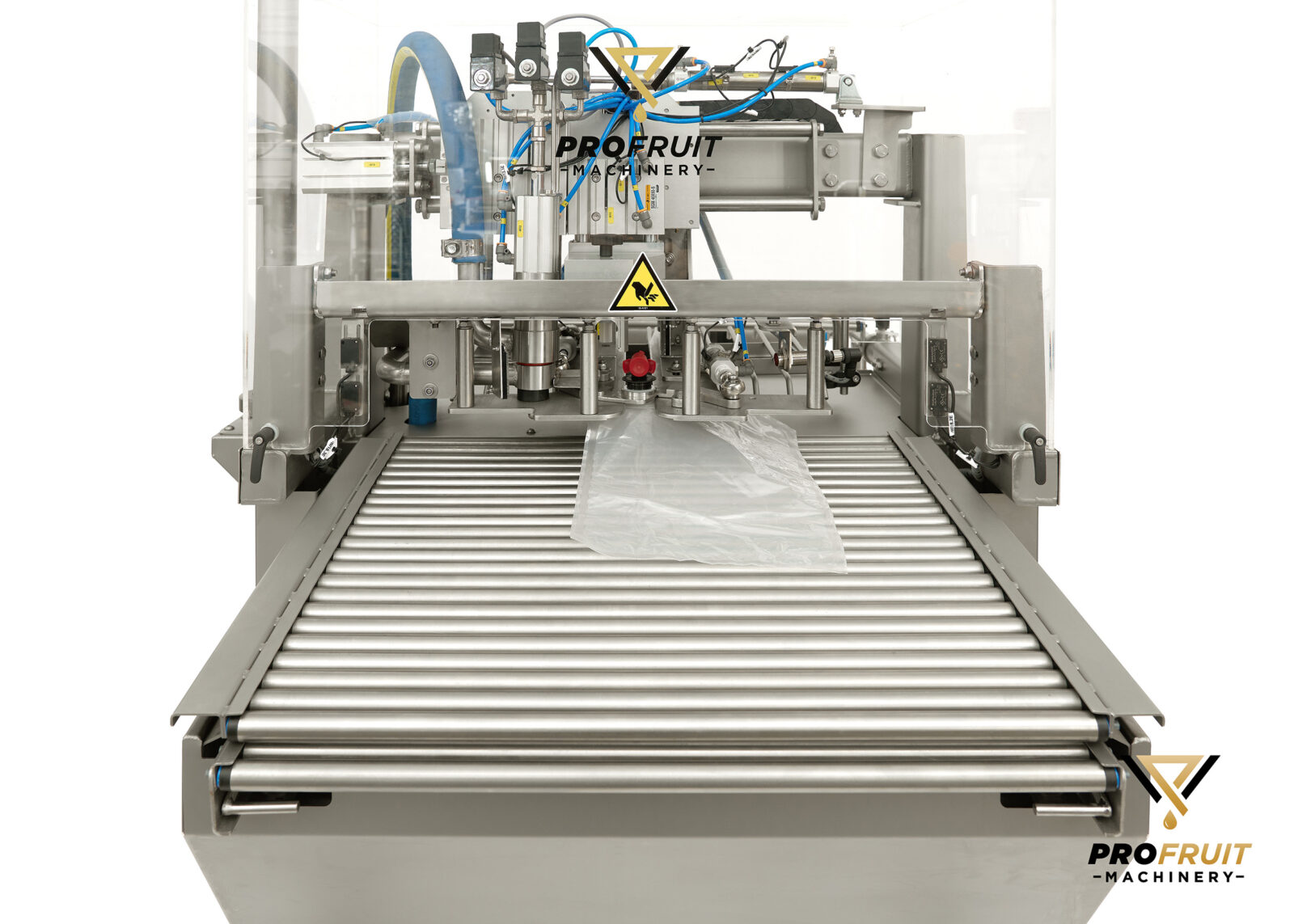

- working table consists of conveyor rollers for smooth bag and pouch handling
- easy to clean with external rinsing and CIP cleaning
- all parts rated IP65 for water protection

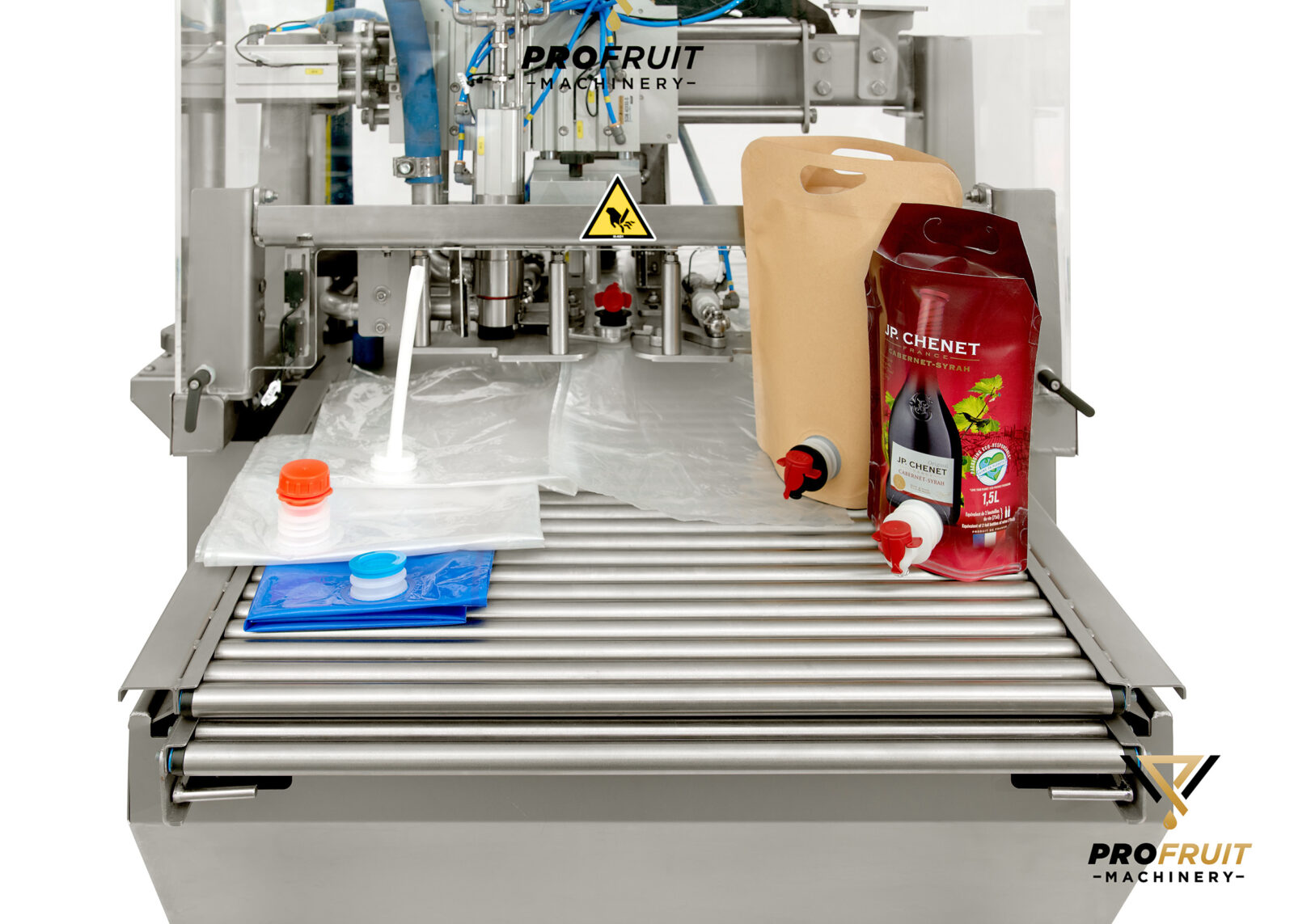

- ideal for filling various liquids: from juice, wine, milk to broth, oil, soap, etc.Option
- sliding extension table for large-volume bags (20–30 L)
Technical Data:
- Capacity up to 2,000 L packages per hour
- weight: 220 kg
- length: 1,181 mm
- width: 1,562 mm
- table width: 727 mm
- height: 1,722 mm
- table height: 1,150 mm
- filling range:
- Bag in Box: 1–30 L
- Stand-up Pouch: 0,75–5 L
