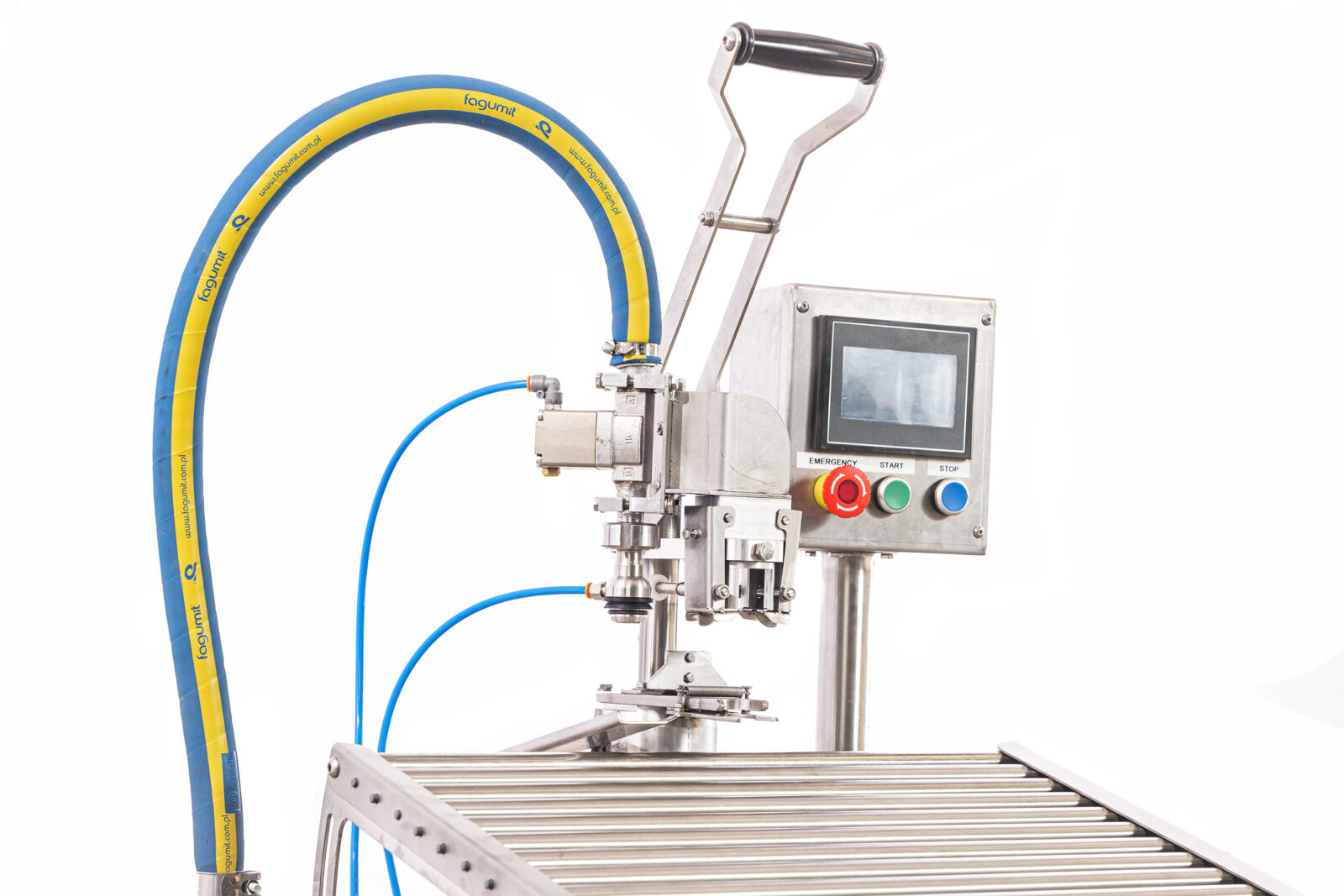

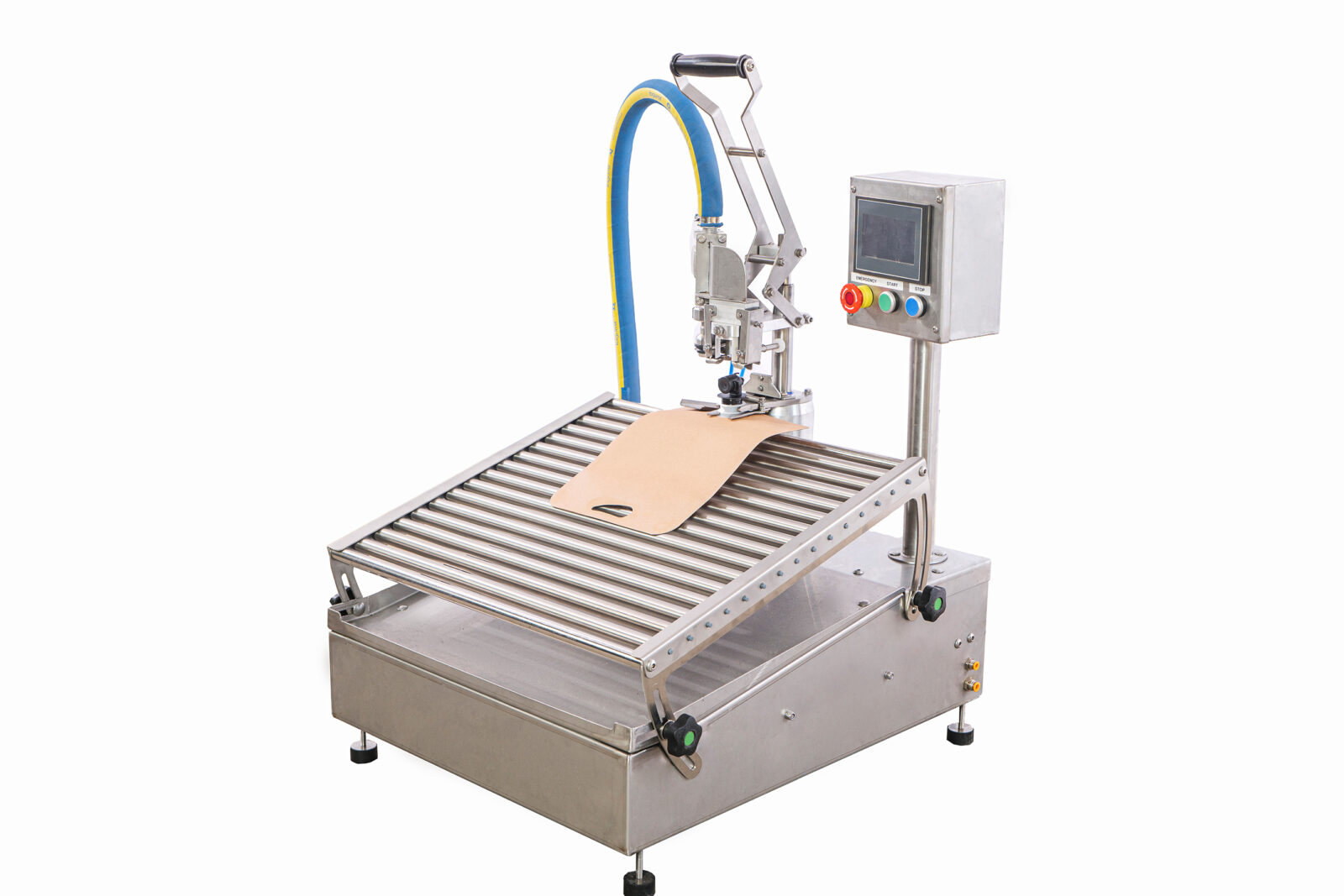

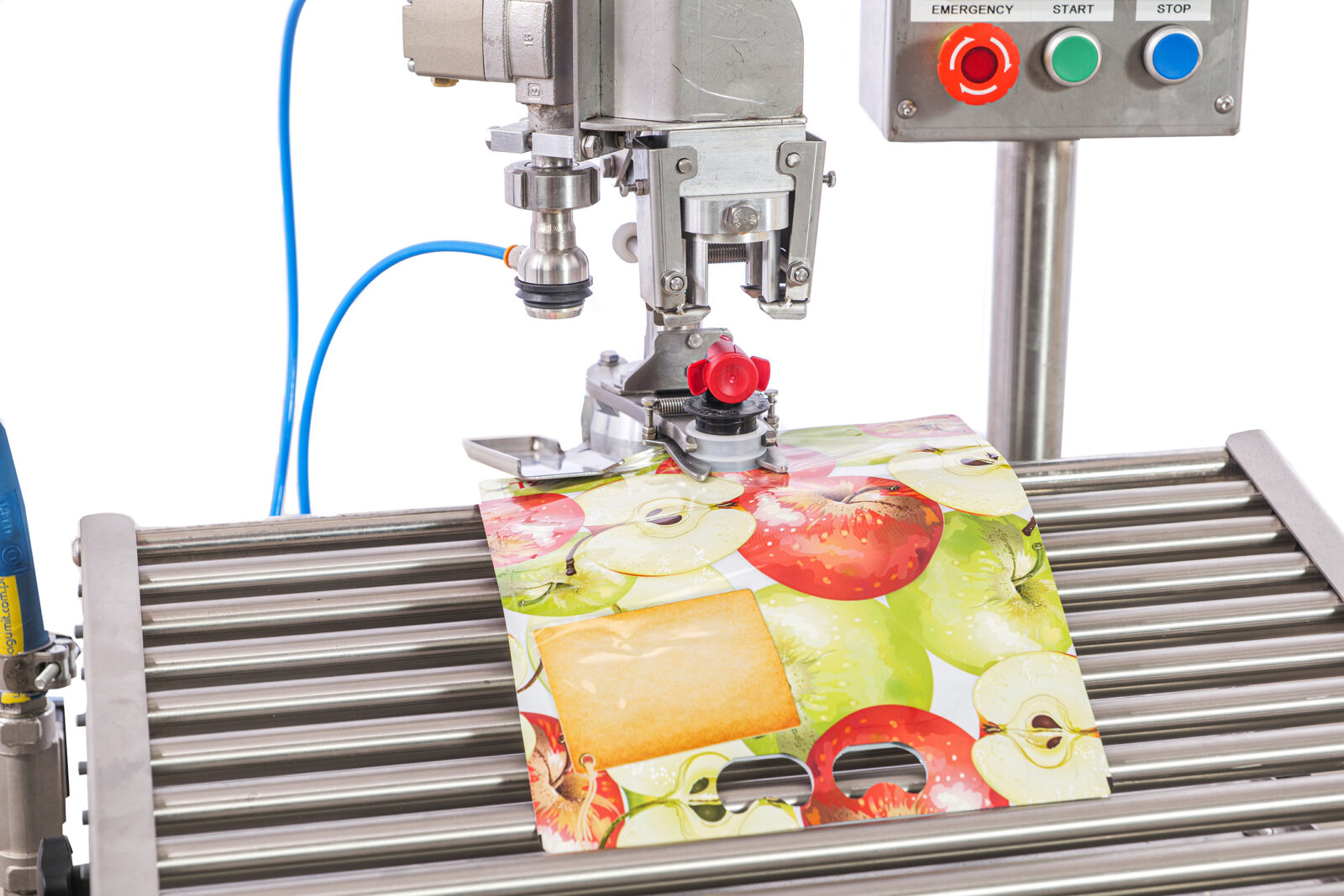

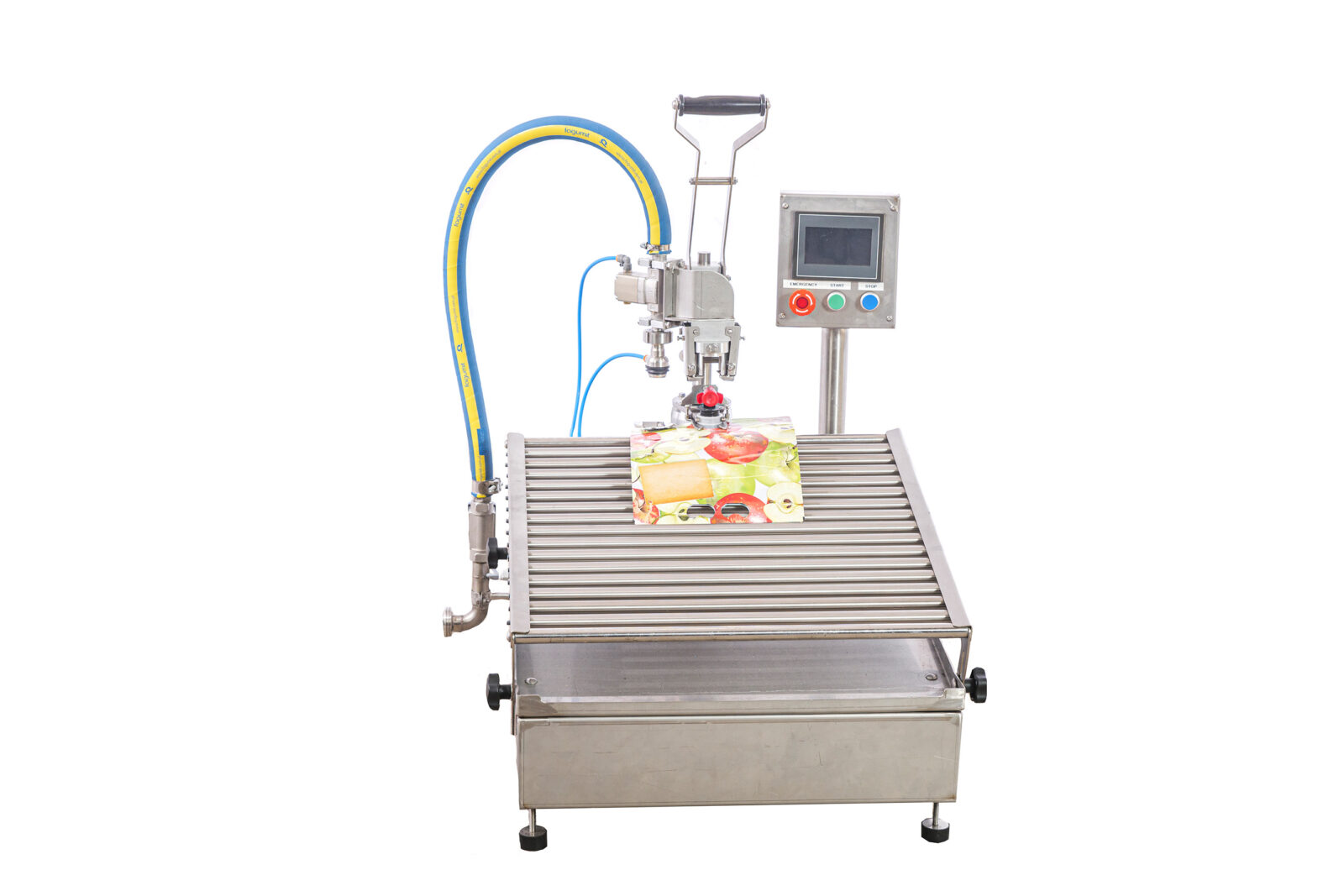

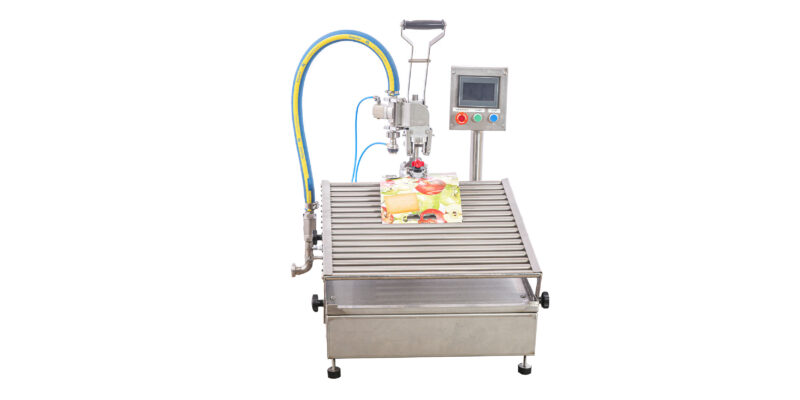

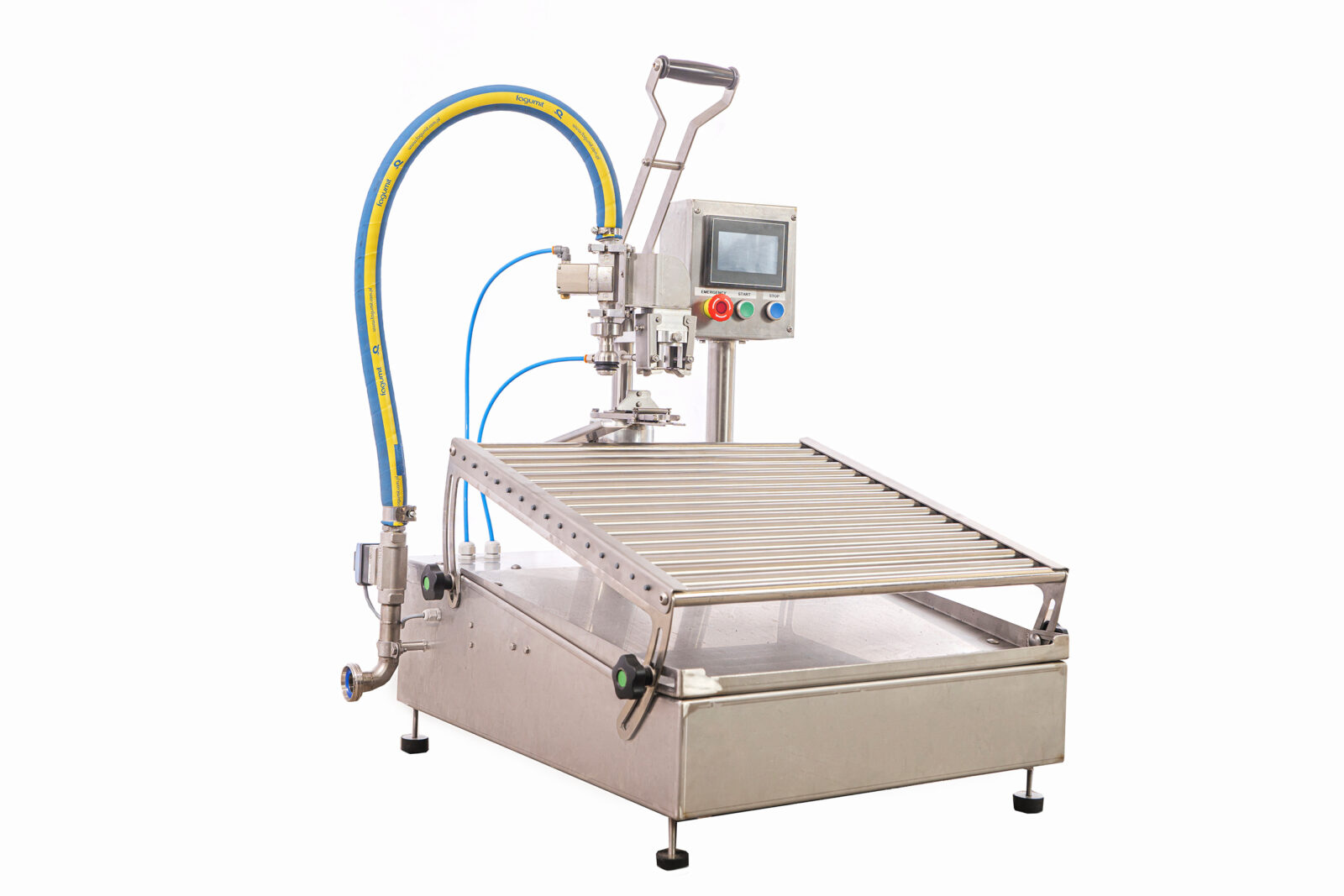

The MINIFLOW is a compact, semi-automatic tabletop filler designed for filling liquids into Bag-in-Box and Stand-up Pouch packaging. Simply insert the bag or pouch and pull the handle: The machine fills the package automatically. Return the handle to its starting position, cap the package, and the filling process is finished.
Equipment:
- adjustable filling table for different bag and pouch sizes
- available with or without pump
- suitable for both hot and cold filling applications
- pre-vacuum function removes excess air in the bags/pouches before filling
- touchscreen panel and a multi-language menu for intuitive operation
- working table consists of conveyor rollers for smooth bag and pouch handling
- easy cleaning with external and CIP cleaning
Technical Data:
- Capacity up to ~200 units of 3 L packages per hour (depending on the pump)
- leight-weight: 50 kg (easy to move and transport)
- measurements (L x H x W): 708 x 910 x 738 mm
- filling range:
- Bag in Box: 1–30 L
- Stand-up Pouch: 0,75–5 L
