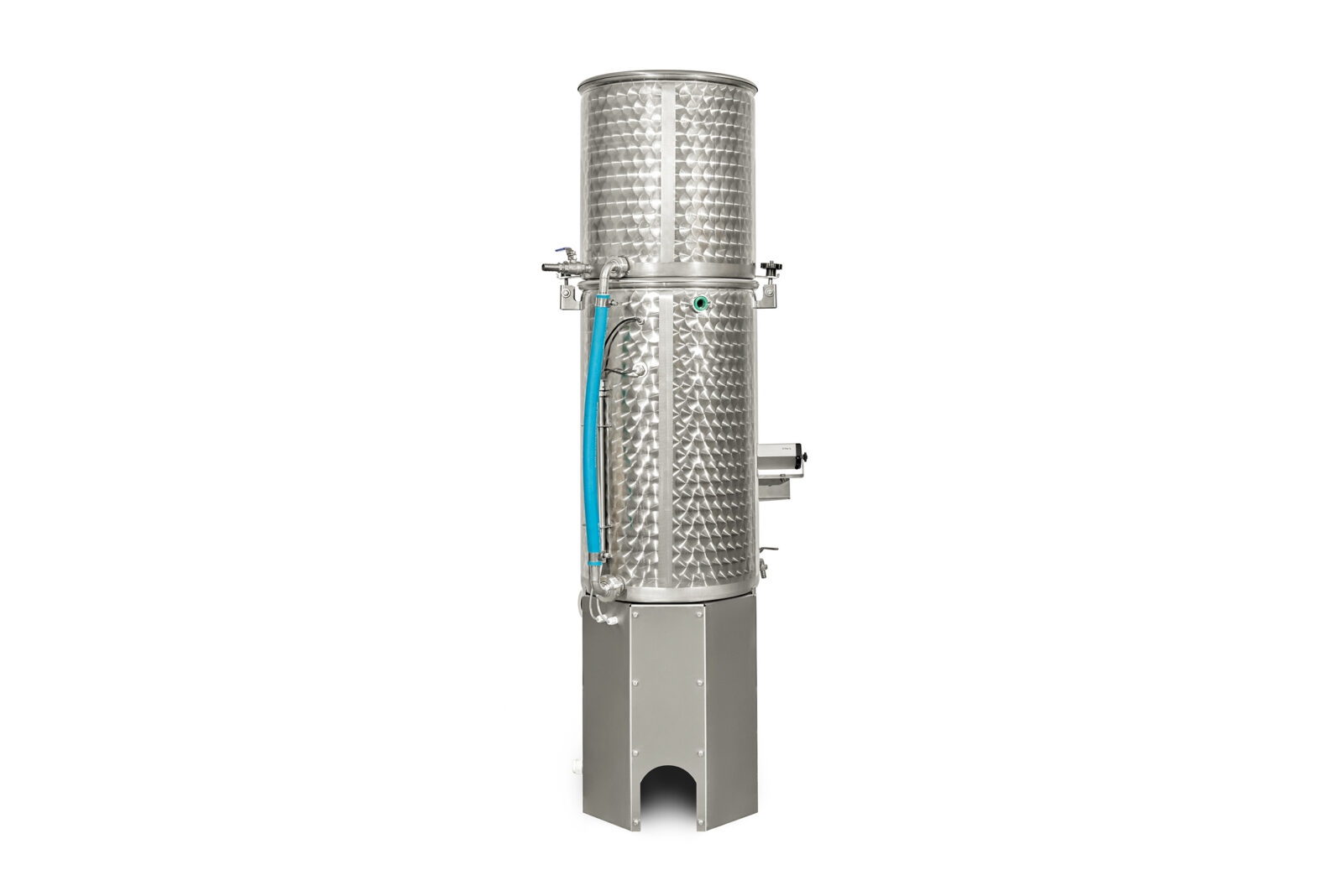

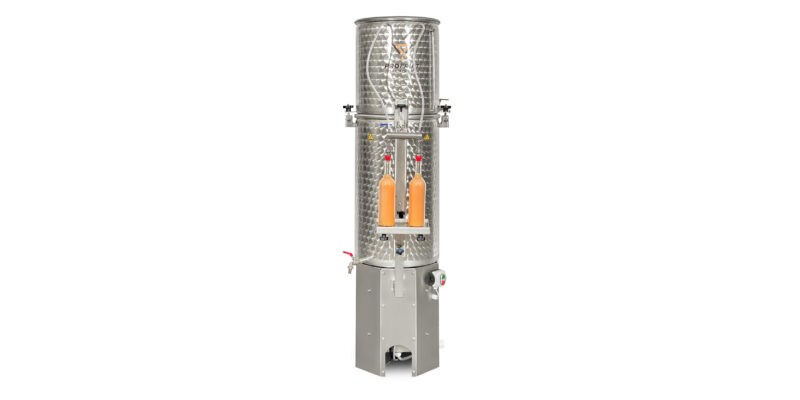

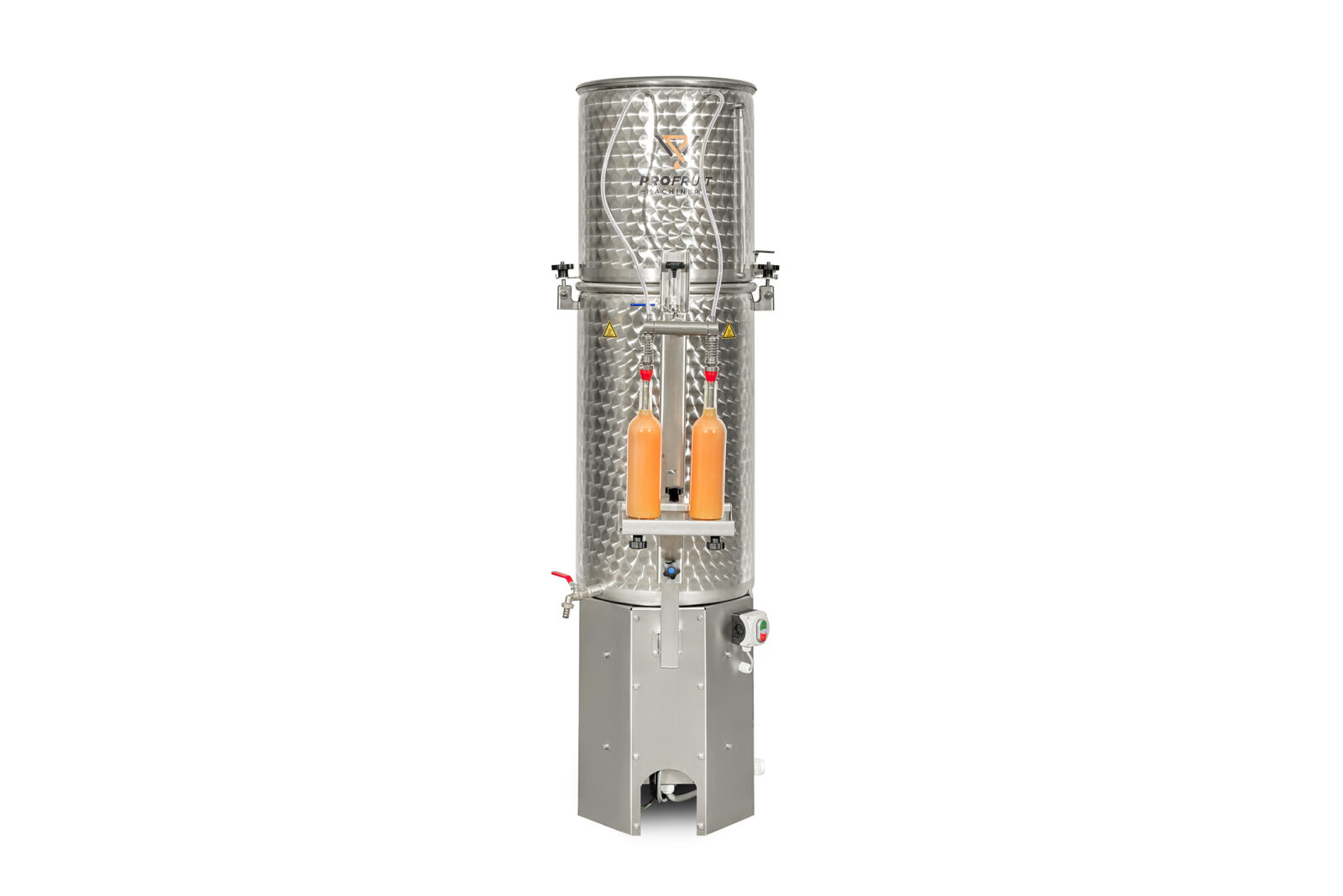

The Pasteurizer-Filler ROCKET is a compact all-in-one system for pasteurizing and filling juice and other liquid products into bottles or Bag-in-Box packaging. With a built-in heating boiler and stainless steel tubular spiral, this machine ensures reliable pasteurization and efficient filling.
Equipment:
- boiler with integrated spiral
- tubular spiral made of hygienic, thin-walled stainless steel
- safety sensors for dry run protection: pasteurizer only starts when sufficient water level is detected

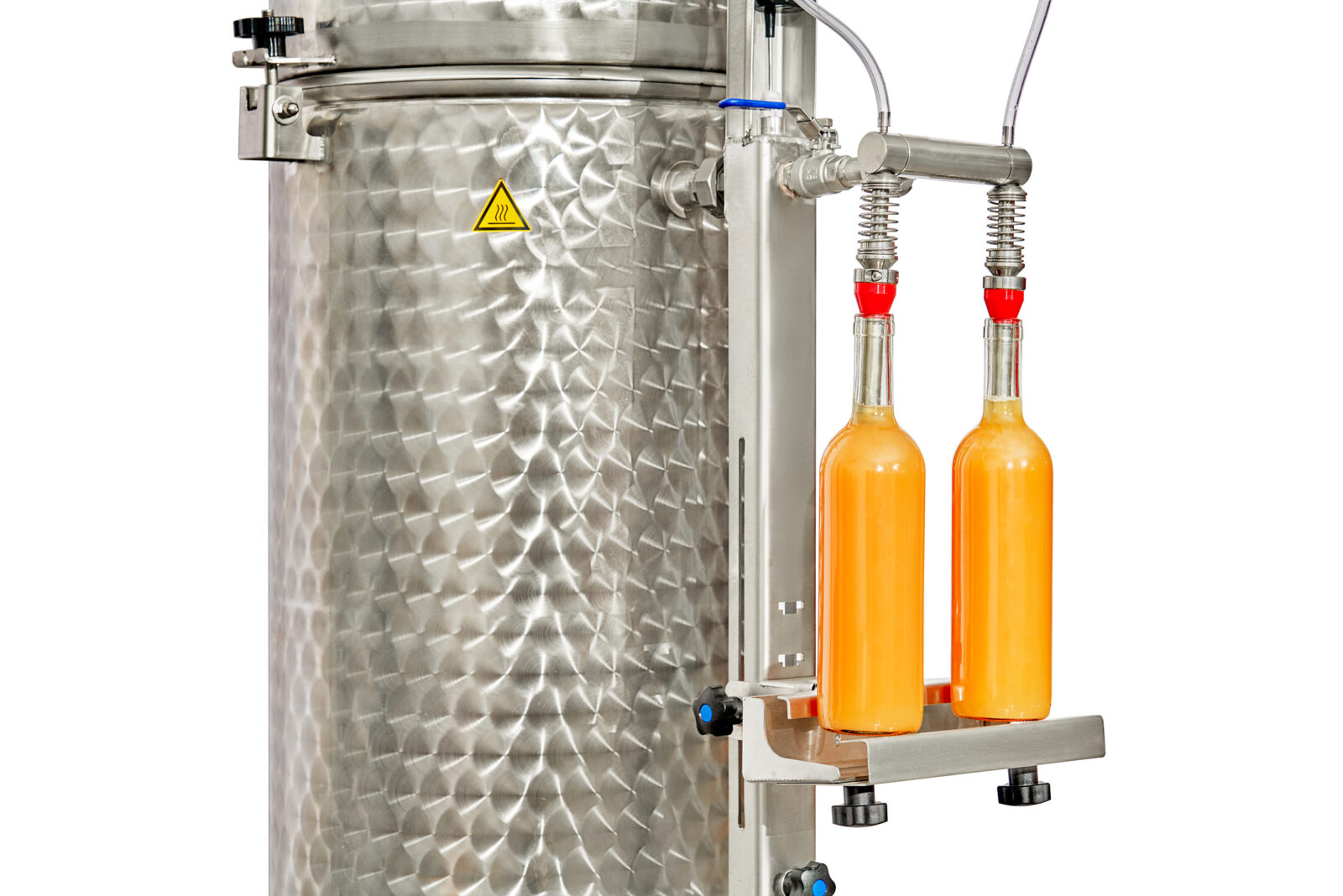

- automatic bottle filling: filling stops when bottle is full

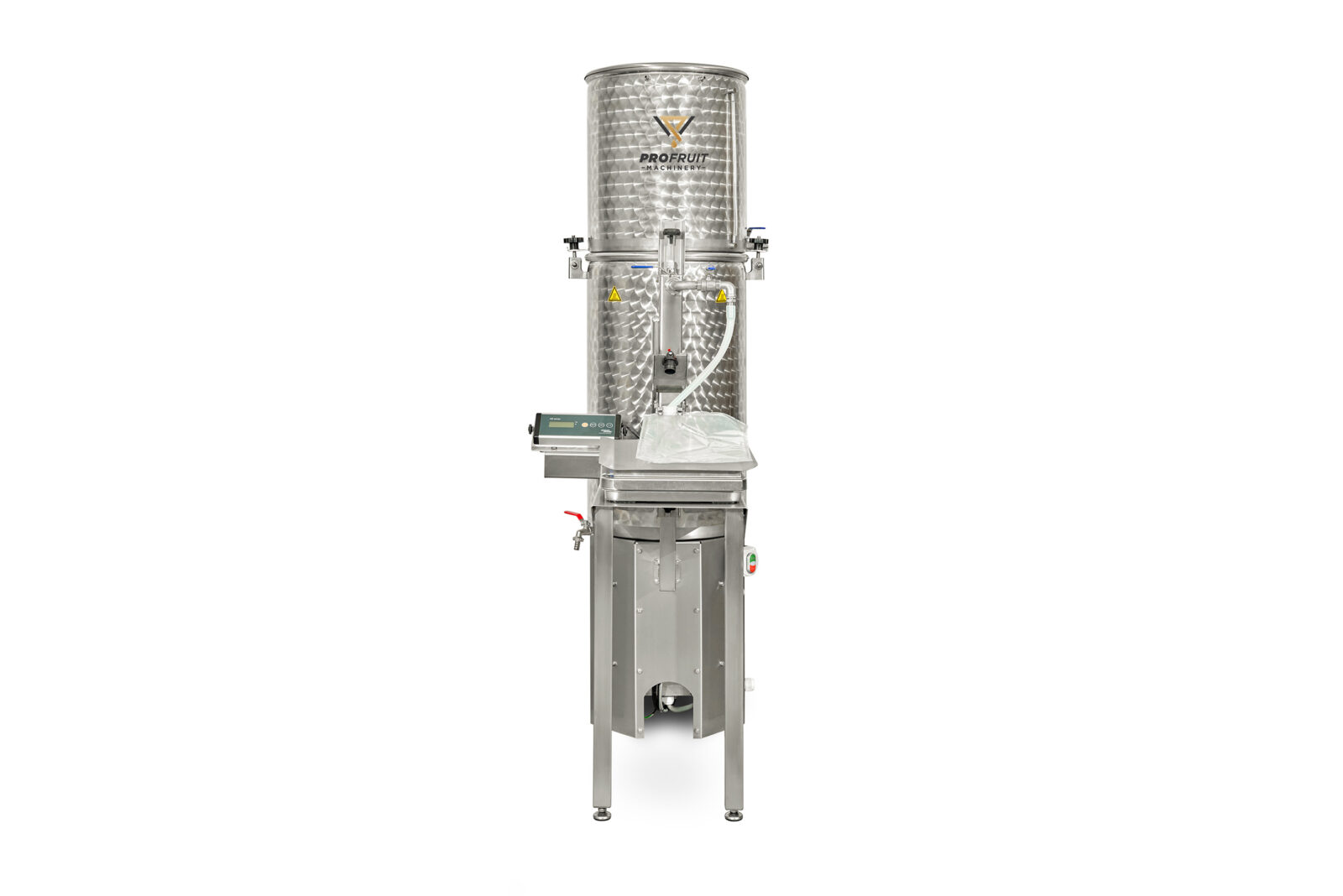

- Bag-in-Box filling table with integrated weighing scales for accurate fill volumes
- adjustable filling table for different bag and bottle sizes
- Temperature Control:
- digital thermostat for automatic control of water temperature
- manual juice temperature monitoring via digital thermometer
Technical Data:
- capacity: 150 – 200 l/h
- maximum heating temperature: 90 ºC (194 °F)
- length: 603 mm
- width: 1,050 mm
- height: 1,768 mm
- table height: 734 mm
